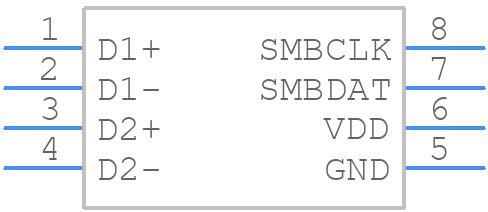

LM95241CIMM-2/NOPB - Texas Instruments

LM95241CIMM-2/NOPB Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A good PCB layout for optimal thermal performance involves placing the device near a thermal pad or a heat sink, and ensuring good thermal conductivity between the device and the heat sink. The datasheet provides some guidelines, but a more detailed application note from TI provides additional recommendations.
• How do I calibrate the temperature sensor for high accuracy?
  Calibration involves trimming the sensor's offset and gain to match the specific application. TI provides a calibration procedure in the datasheet, which involves measuring the sensor's output at multiple temperatures and adjusting the offset and gain accordingly.
• What is the maximum cable length for the I2C interface?
  The maximum cable length for the I2C interface depends on the specific application and the capacitance of the cable. As a general rule, TI recommends keeping the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable communication.
• Can I use the LM95241CIMM-2/NOPB in a high-vibration environment?
  Yes, the LM95241CIMM-2/NOPB is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage.
• How do I handle thermal shutdown and fault detection?
  The LM95241CIMM-2/NOPB has built-in thermal shutdown and fault detection features. When the device detects an over-temperature condition, it will shut down and assert the THERM pin. The datasheet provides more information on how to handle these events and implement fault detection in your system.
