LM95245CIMM/NOPB - Texas Instruments

Description: ±0.75°C remote & local temperature sensor with SMBus, beta compensation for 45nm d

Download LM95245CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

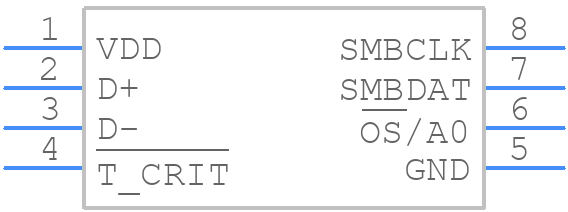

LM95245CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM95245CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom
3D Models
LM95245CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)
click to zoom

LM95245CIMM/NOPB Details

  • Manufacturer Part Number:

    LM95245CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Accuracy-Max (Cel):

    2 Cel

  • Additional Feature:

    HYSTERESIS 400MV

  • Body Breadth:

    3 mm

  • Body Height:

    1.09 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.67 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    MATTE TIN

  • Termination Type:

    SOLDER

LM95245CIMM/NOPB Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias connecting the thermal pad to the ground plane is recommended for optimal thermal performance.
  • Use a low-pass filter or a shielded cable to connect the sensor to the microcontroller, and consider using a differential measurement technique to reduce noise.
  • The maximum cable length for the I2C interface is approximately 10 meters, but this can be extended using I2C repeaters or buffers.
  • Yes, the LM95245CIMM/NOPB is rated for operation up to 125°C, but ensure that the PCB and surrounding components can also withstand the high temperature.
  • Use a precision temperature reference and a calibration routine to adjust the sensor's offset and gain to achieve high accuracy.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM95245CIMM/NOPB Overview

Use the download button to access the LM95245CIMM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM952, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
