LM96063CISDX/NOPB - Texas Instruments

Description: 1 remote and local temp sensor fan controller with acoustic fan noise reduction

Download LM96063CISDX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

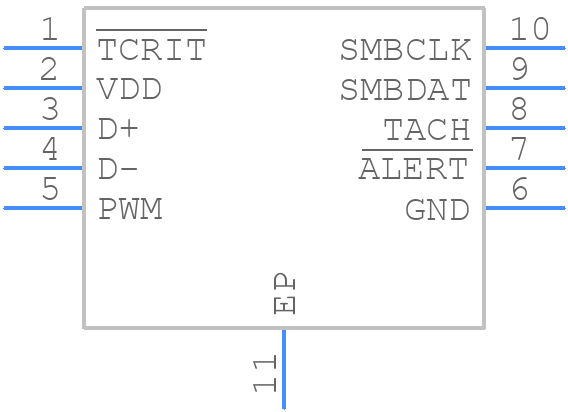

Symbol
LM96063CISDX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM96063CISDX/NOPB - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSC0010B
click to zoom
3D Models
LM96063CISDX/NOPB - Texas Instruments - 3D model - Small Outline No-lead - DSC0010B
click to zoom

LM96063CISDX/NOPB Details

  • Manufacturer Part Number:

    LM96063CISDX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Accuracy-Max (Cel):

    3 Cel

  • Body Breadth:

    3 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    3 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    11

  • Number of Terminals:

    10

  • Operating Current-Max:

    0.825 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    2-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC10,.12,20

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

LM96063CISDX/NOPB Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Use a compensation network with a series RC network (Rc and Cc) to ensure stability. The values of Rc and Cc can be calculated using the datasheet's stability analysis section.
  • The maximum capacitive load is 10nF. Exceeding this value may cause oscillations or instability. Use a series resistor to limit the capacitive load if necessary.
  • Use a voltage supervisor or a power-on reset circuit to detect overvoltage and undervoltage conditions. Add a TVS diode or a zener diode to clamp the input voltage to a safe level.
  • Use a low-ESR ceramic capacitor (X5R or X7R) with a value between 1uF to 10uF, depending on the input voltage and output current requirements.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LM96063CISDX/NOPB Overview

Use the download button to access the LM96063CISDX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LM960, or try a keyword search, such as Temperature Sensors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
