LM96570SQE/NOPB - Texas Instruments

Description: 8-Channel, Low Jitter Ultrasound Transmit Beamformer with Programmable Duty-Cycle and High Resolutio

Download LM96570SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

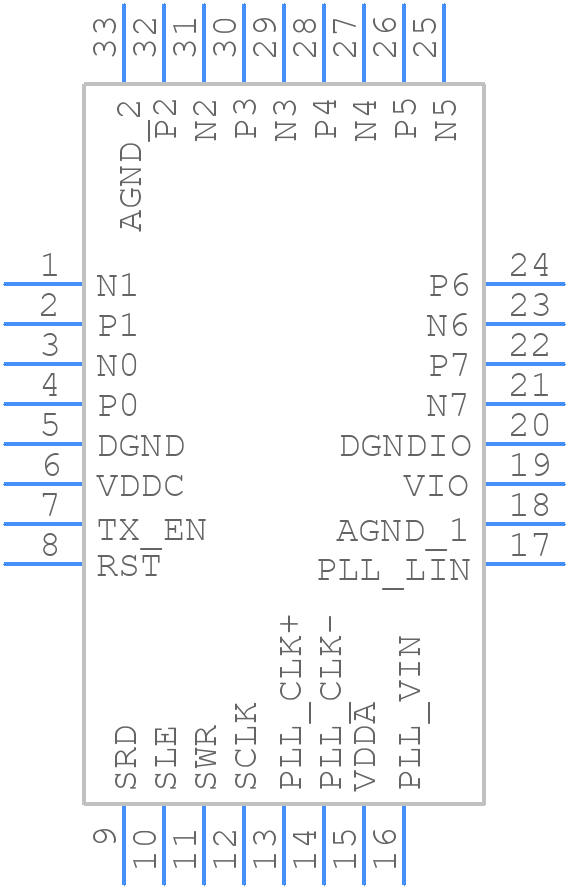

LM96570SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LM96570SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTV0032A_1
click to zoom
3D Models
LM96570SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTV0032A_1
click to zoom

LM96570SQE/NOPB Details

  • Manufacturer Part Number:

    LM96570SQE/NOPB

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30
