Part Image

LMC567CMX/NOPB - Texas Instruments

Description: Low Power Tone Decoder

Download LMC567CMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

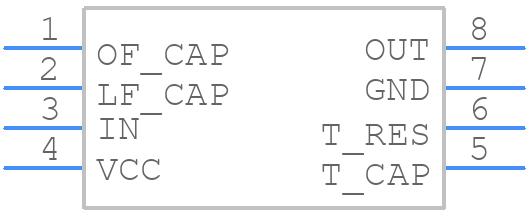

LMC567CMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC567CMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A height 1.75
click to zoom
3D Models
LMC567CMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D0008A height 1.75
click to zoom

LMC567CMX/NOPB Details

  • Manufacturer Part Number:

    LMC567CMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.23

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    1.3 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Telecom IC Type:

    TONE DECODER CIRCUIT

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

LMC567CMX/NOPB Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VEE. This ensures that the internal biasing circuitry is properly established before the amplifier is enabled.
  • To ensure stability, it's recommended to use a compensation capacitor (Cc) between pins 1 and 8. The value of Cc depends on the gain and frequency of operation, but a good starting point is 10-22 pF.
  • The LMC567CMX/NOPB can drive capacitive loads up to 100 pF. However, it's recommended to limit the capacitive load to 10-20 pF to ensure stability and prevent oscillations.
  • To reduce noise and hum, ensure that the power supply lines are well-filtered and decoupled. Use a 10-100 nF capacitor between VCC and GND, and a 10-100 nF capacitor between VEE and GND. Additionally, use a ground plane and keep the signal traces away from the power supply lines.
  • The LMC567CMX/NOPB can operate over a temperature range of -40°C to 125°C. However, the device's performance may degrade at extreme temperatures, so it's recommended to operate within a temperature range of 0°C to 70°C for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMC567CMX/NOPB Overview

Use the download button to access the LMC567CMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC56, or try a keyword search, such as Telecom Signaling Circuits
