Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
To ensure stability, it's essential to follow the recommended compensation network, use a stable voltage supply, and minimize parasitic capacitances. Additionally, the datasheet provides guidelines for selecting the compensation components and calculating the gain-bandwidth product.
The maximum power dissipation of the LMC6022IM is dependent on the package type and operating conditions. The datasheet provides a formula to calculate the power dissipation based on the supply voltage, output current, and package thermal resistance. It's essential to ensure that the device operates within the recommended power dissipation limits to prevent overheating and damage.
Yes, the LMC6022IM can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is matched to the source impedance, and the output impedance is matched to the load impedance. Additionally, the datasheet provides guidelines for selecting the compensation components and calculating the gain-bandwidth product for unity-gain buffer applications.
The LMC6022IM is a sensitive device and requires ESD protection during handling and assembly. It's recommended to follow standard ESD protection procedures, such as using ESD-safe workstations, wrist straps, and packaging materials. Additionally, the datasheet provides guidelines for ESD protection circuits and devices that can be used to protect the LMC6022IM.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC6022IM/NOPB Overview

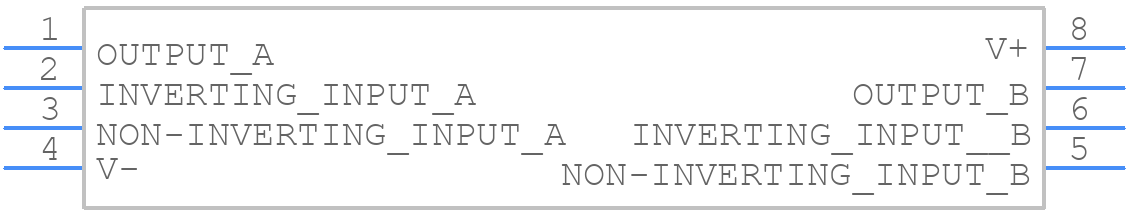

Use the download button to access the LMC6022IM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC60,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
