Please enter a minimum 3 letters or numbers
Technical Content
Part Image

LMC6044AIMX/NOPB - Texas Instruments

Description: OP Amp Quad GP R-R O/P ±7.75V/15.5V 14-Pin SOIC T/R

Download LMC6044AIMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

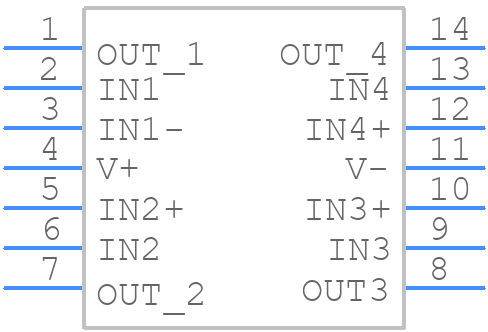

LMC6044AIMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC6044AIMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - 14 Ld SOIC
click to zoom
3D Models
LMC6044AIMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - 14 Ld SOIC
click to zoom

LMC6044AIMX/NOPB Details

  • Manufacturer Part Number:

    LMC6044AIMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000004 µA

  • Bias Current-Max (IIB) @25C:

    0.000004 µA

  • Common-mode Reject Ratio-Min:

    62 dB

  • Common-mode Reject Ratio-Nom:

    75 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000002 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.01 V/us

  • Slew Rate-Nom:

    0.02 V/us

  • Supply Current-Max:

    0.068 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    100

  • Voltage Gain-Min:

    60000

  • Wideband:

    NO

  • Width:

    3.9 mm

LMC6044AIMX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a layout that minimizes the distance between the device and the bypass capacitors, and places the capacitors as close to the power pins as possible. Additionally, a solid ground plane and a separate analog ground plane are recommended to reduce noise and improve performance.
  • The recommended value for the bypass capacitors is 0.1uF to 1uF, with a voltage rating of at least 10V. The exact value depends on the specific application and the amount of noise present in the system. A larger capacitor value can provide better noise filtering, but may also increase the startup time of the device.
  • The LMC6044AIMX/NOPB has an operating temperature range of -40°C to 125°C. However, the device's performance and accuracy may degrade at temperatures above 85°C. It is recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • The LMC6044AIMX/NOPB requires a single 5V power supply, and the device is enabled when the voltage on the EN pin is high. The device has an internal power-on reset circuit that ensures the device is properly initialized on power-up. It is recommended to follow the power-up sequence specified in the datasheet to ensure proper initialization.
  • The typical current consumption of the LMC6044AIMX/NOPB is 1.5mA, but this can vary depending on the specific application and the operating conditions. The device has a shutdown mode that can reduce the current consumption to less than 1uA when the EN pin is low.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMC6044AIMX/NOPB Overview

Use the download button to access the LMC6044AIMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC60, or try a keyword search, such as Operational Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LMC6044AIMX/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LMC6044AIMX/NOPB Alternates

Showing results

Image Part Number Model
Part Image LMC6044AIMX Rochester Electronics LLC

QUAD OP-AMP, 3000uV OFFSET-MAX, 0.1MHz BAND WIDTH, PDSO14, SOIC-14
