Texas Instruments recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
Monitor the power supply voltage to ensure it is within the recommended range of 2.7V to 6V. Also, ensure the device is operated within the recommended temperature range of -40°C to 125°C. Use thermal management techniques such as heat sinks or thermal pads to prevent overheating.
Use a combination of capacitors and ferrite beads to filter out noise and ripple on the power supply lines. A 10uF ceramic capacitor in parallel with a 100nF ceramic capacitor, along with a ferrite bead, can provide effective noise filtering.
Use an oscilloscope to monitor the input and output voltages, as well as the power supply lines. Check for signs of oscillation, noise, or ringing on the output. Verify that the input voltage is within the recommended range and that the device is properly biased. Consult the datasheet and application notes for troubleshooting guides and common pitfalls to avoid.
Common mistakes to avoid include not following the recommended layout and routing guidelines, not providing adequate power supply decoupling, and not ensuring the device is operated within its recommended operating conditions. Additionally, avoid overloading the output, and ensure that the input voltage is within the recommended range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC6044IN/NOPB Overview

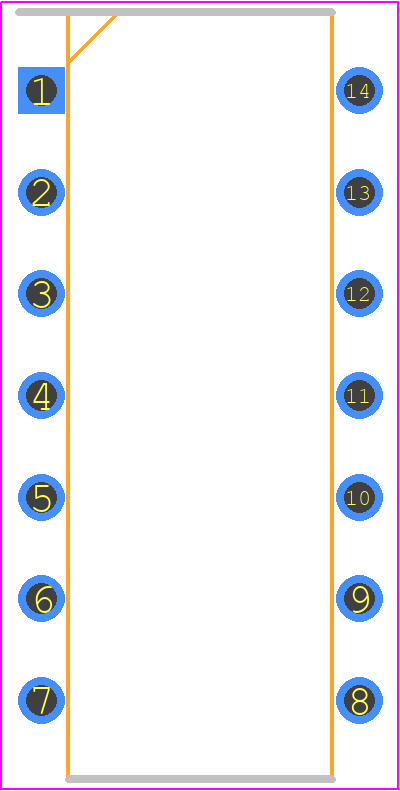

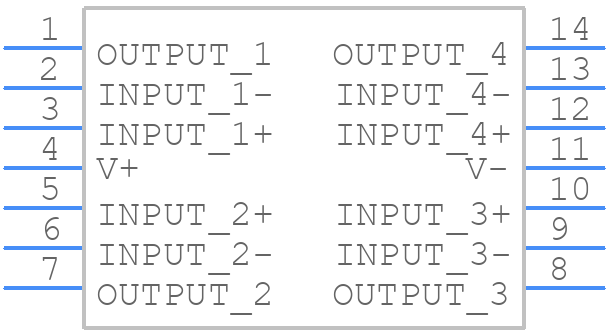

Use the download button to access the LMC6044IN/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC60,
or try a keyword search, such as Operational Amplifiers
