LMC6442IMX/NOPB - Texas Instruments

Description: Dual Micropower Rail-to-Rail Output Single Supply Operational Amplifier

Download LMC6442IMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

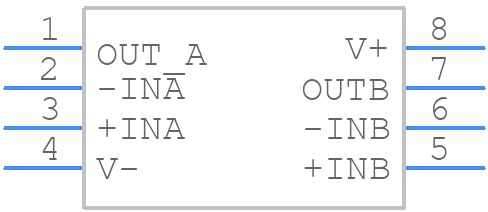

LMC6442IMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC6442IMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LMC6442IMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

LMC6442IMX/NOPB Details

  • Manufacturer Part Number:

    LMC6442IMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.000004 µA

  • Bias Current-Max (IIB) @25C:

    5e-8 µA

  • Common-mode Reject Ratio-Min:

    67 dB

  • Common-mode Reject Ratio-Nom:

    92 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000002 µA

  • Input Offset Voltage-Max:

    3000 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    0.0022 V/us

  • Slew Rate-Nom:

    0.0041 V/us

  • Supply Current-Max:

    0.0024 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    10

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3.9 mm

LMC6442IMX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to minimize noise. Additionally, keep the input and output traces short and away from each other to reduce crosstalk.
  • The LMC6442IMX/NOPB requires a specific power-up and power-down sequence to prevent damage or incorrect operation. The recommended sequence is to power up the VCC pin first, followed by the VIN pin, and then the VREF pin. During power-down, the sequence should be reversed.
  • The LMC6442IMX/NOPB can drive a maximum capacitive load of 100pF. Exceeding this limit can cause instability and oscillations in the amplifier. To ensure stability, it's recommended to use a series resistor with the capacitive load to dampen the oscillations.
  • The gain and bandwidth of the LMC6442IMX/NOPB can be optimized by selecting the appropriate gain-setting resistors and capacitors. Texas Instruments provides a gain-bandwidth calculator tool to help designers optimize the amplifier's performance for their specific application.
  • The LMC6442IMX/NOPB has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's recommended to provide adequate heat sinking, use a thermally conductive PCB material, and avoid operating the device near its maximum power dissipation rating.
