LMC6464AIM - Texas Instruments

Description: 4 lowpower opamp,LMC6464AIM 0.05MHz(GBP)

Download LMC6464AIM Model

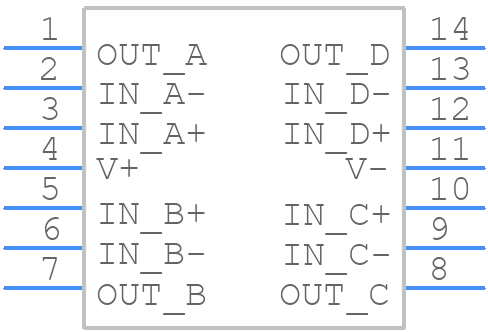

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LMC6464AIM - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
LMC6464AIM - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

LMC6464AIM Details

  • Manufacturer Part Number:

    LMC6464AIM

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, MS-012AB, SOIC-14

  • Pin Count:

    14

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.00001 µA

  • Bias Current-Max (IIB) @25C:

    0.0000015 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    85 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.000005 µA

  • Input Offset Voltage-Max:

    500 µV

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e0

  • Length:

    8.65 mm

  • Low-Bias:

    YES

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP14,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Slew Rate-Min:

    8000 V/us

  • Slew Rate-Nom:

    0.028 V/us

  • Supply Current-Max:

    0.11 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Unity Gain BW-Nom:

    50

  • Voltage Gain-Min:

    3

  • Wideband:

    NO

  • Width:

    3.9 mm

LMC6464AIM Frequently Asked Questions (FAQs)

  • To minimize noise and ensure optimal performance, it is recommended to follow good PCB layout practices, such as separating analog and digital grounds, using a solid ground plane, and keeping signal traces short and direct. Additionally, it is recommended to place the op-amp close to the signal source and use a low-impedance power supply.
  • The input bias current and input offset voltage of the LMC6464AIM can be handled by using a high-impedance input source, such as a voltage divider or a buffer amplifier, and by using a low-offset voltage op-amp or an op-amp with a built-in offset voltage adjustment. Additionally, the input bias current can be compensated for by using a current-cancellation technique.
  • The maximum capacitive load that the LMC6464AIM can drive is not explicitly stated in the datasheet, but it is generally recommended to limit the capacitive load to 100pF or less to ensure stability and prevent oscillation. However, the actual capacitive load limit may vary depending on the specific application and circuit configuration.
  • To ensure the stability of the LMC6464AIM in a feedback loop, it is recommended to use a compensation capacitor in the feedback path, such as a 10pF to 100pF capacitor, to reduce the phase shift and prevent oscillation. Additionally, the feedback loop gain and phase margin should be carefully designed to ensure stability.
  • The recommended power supply decoupling for the LMC6464AIM is to use a 0.1uF to 1uF ceramic capacitor in parallel with a 10uF to 100uF electrolytic capacitor, placed as close as possible to the op-amp power pins. This helps to filter out noise and ripple on the power supply lines and ensure stable operation.
