Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general analog circuit layout guidelines, such as separating analog and digital grounds, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
The LMC6464AMJ-QML requires a specific bias voltage and configuration to operate correctly. Refer to the datasheet for the recommended biasing and configuration, and consider consulting with a Texas Instruments application engineer or using their online design tools to ensure the device is properly configured for your specific application.
The LMC6464AMJ-QML has an operating temperature range of -55°C to 125°C. As the temperature increases, the device's performance may degrade, including increased noise, reduced bandwidth, and decreased output swing. Ensure the device is operated within the recommended temperature range to maintain optimal performance.
The LMC6464AMJ-QML is a sensitive device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap, mat, or workstation, and ensure all equipment and tools are properly grounded to prevent damage to the device.
Proper power supply decoupling and filtering are critical to ensure the LMC6464AMJ-QML operates correctly. Use a combination of ceramic and electrolytic capacitors, and consider adding a ferrite bead or inductor to filter out high-frequency noise. Refer to the datasheet and application notes for specific recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC6464AMJ-QML Overview

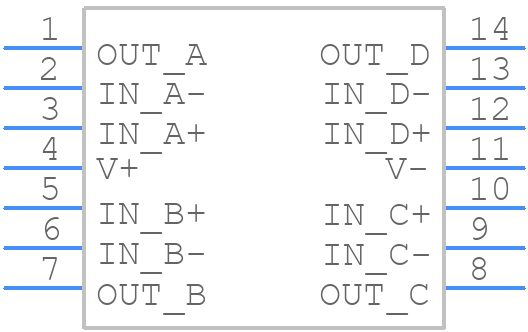

Use the download button to access the LMC6464AMJ-QML schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC64,
or try a keyword search, such as Operational Amplifiers
