The maximum power dissipation of the LMC6484AIN is dependent on the package type and ambient temperature. For the SOIC package, the maximum power dissipation is 670mW at 25°C. For the PDIP package, it is 830mW at 25°C. However, it's recommended to derate the power dissipation based on the ambient temperature to ensure reliable operation.
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-100pF) between the output and the inverting input pins. This capacitor helps to compensate for the internal pole of the op-amp and prevents oscillations.
To minimize noise and EMI, it's recommended to follow good PCB layout practices such as keeping the input and output traces separate, using a solid ground plane, and avoiding long traces. Additionally, it's recommended to place a 0.1uF decoupling capacitor between the power supply pins and the ground plane, and to use a low-ESR capacitor for the power supply bypassing.
While the LMC6484AIN can be used as a comparator, it's not recommended due to its relatively slow slew rate (0.3V/us) and limited output current (±20mA). Texas Instruments recommends using a dedicated comparator such as the LM339 or LM2901 for comparator applications.
The input bias current of the LMC6484AIN is typically around 10fA, which is very low. However, it's still important to ensure that the input impedance of the circuit is high enough to minimize the effect of the input bias current. Additionally, it's recommended to use a high-impedance input source and to avoid using large resistors in the input circuitry.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC6484AIN Overview

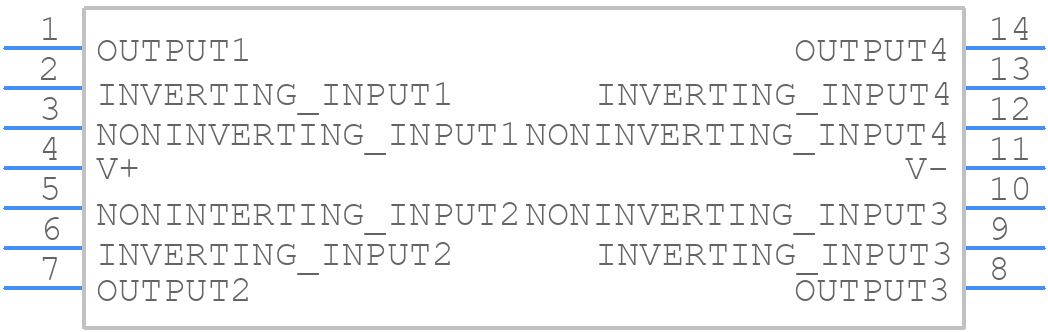

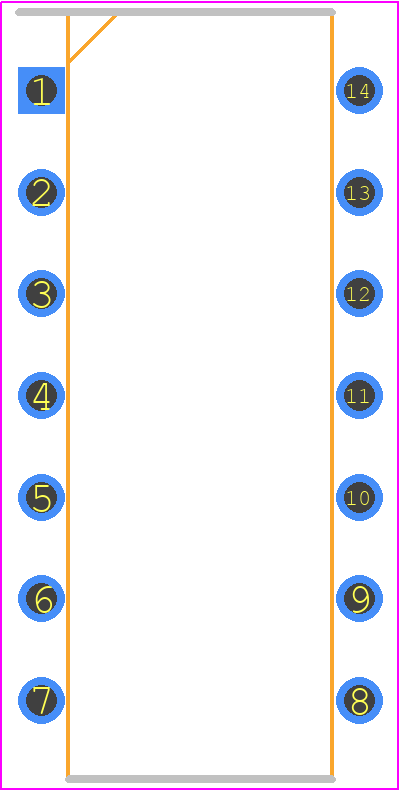

Use the download button to access the LMC6484AIN schematic symbol, PCB footprint, and 3D model.
