Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
Optimizing performance requires careful consideration of the input signal range, gain, and bandwidth. It's also important to ensure proper power supply decoupling, minimize noise and interference, and optimize the PCB layout. TI provides application notes and simulation tools to help with this process.
The LMC6762AIMX is specified to operate from -40°C to 125°C, but it's recommended to derate the device for extended operation above 85°C. Consult the datasheet for specific derating guidelines.
Common issues can often be resolved by checking the power supply, input signal integrity, and PCB layout. TI provides troubleshooting guides and application notes to help identify and resolve common issues.
Yes, the LMC6762AIMX is qualified for automotive and high-reliability applications. However, it's essential to follow TI's guidelines for qualification, testing, and validation to ensure the device meets the specific requirements of your application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC6762AIMX Overview

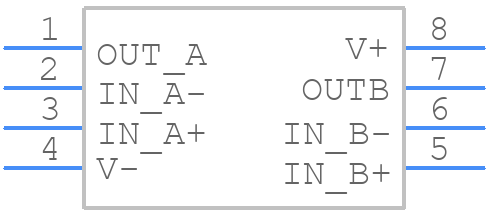

Use the download button to access the LMC6762AIMX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC67,
or try a keyword search, such as Comparators
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
