Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the device close to the analog signal sources to minimize noise. Additionally, it's recommended to keep the analog and digital grounds separate and connect them at a single point.
Optimizing performance requires careful consideration of the input signal, output load, and power supply. Ensure the input signal is within the recommended range, the output load is within the specified range, and the power supply is clean and stable. Additionally, adjust the gain and bandwidth settings according to the application requirements.
The LMC7215IM5X is rated for operation from -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To minimize EMI and RFI, use a shielded enclosure, keep the device away from high-frequency sources, and use a low-pass filter on the input signal. Additionally, ensure the PCB layout is designed to minimize radiation and use a common-mode choke on the power supply lines.
The recommended power-up sequence is to apply the power supply voltage (VCC) first, followed by the analog input signal, and then the digital control signals. This ensures the device is properly initialized and configured before operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMC7215IM5X Overview

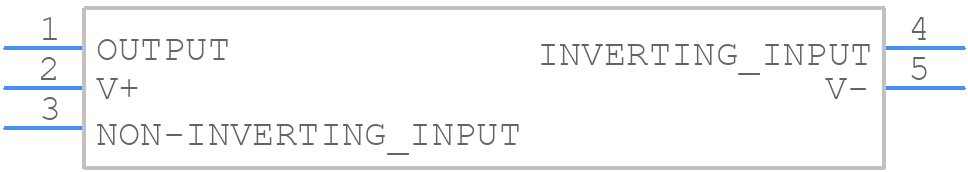

Use the download button to access the LMC7215IM5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC72,
or try a keyword search, such as Comparators
