LMC7215QIM5X/NOPB - Texas Instruments

Description: Comparator Single 8V Automotive 5-Pin SOT-23 T/R

Download LMC7215QIM5X/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

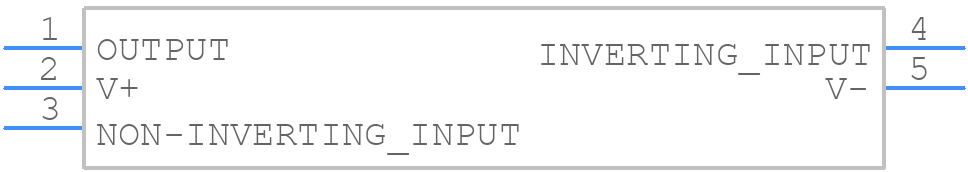

Symbol
LMC7215QIM5X/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC7215QIM5X/NOPB - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DBV
click to zoom
3D Models
LMC7215QIM5X/NOPB - Texas Instruments - 3D model - SOT23 (5-Pin) - DBV
click to zoom

LMC7215QIM5X/NOPB Details

  • Manufacturer Part Number:

    LMC7215QIM5X/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    5e-8 µA

  • Bias Current-Max (IIB) @25C:

    5e-8 µA

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    12200 ns

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.45 mm

  • Subcategory:

    Comparator

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage Limit-Max:

    10 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

LMC7215QIM5X/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and oscillations.
  • Verify that the device is operating within its recommended voltage range (2.7V to 5.5V), temperature range (-40°C to 125°C), and that the input and output signals are within the specified voltage ranges. Also, ensure that the device is properly decoupled and that the power supply is stable and noise-free.
  • The LMC7215QIM5X/NOPB can drive capacitive loads up to 100pF, but it's recommended to limit the load capacitance to 50pF or less to ensure stable operation and minimize ringing.
  • Use a low-pass filter or a ferrite bead in series with the output to reduce high-frequency noise and oscillations. Additionally, ensure that the output is properly terminated and that the PCB layout is optimized for low noise and oscillations.
  • Yes, the LMC7215QIM5X/NOPB is rated for operation up to 125°C, but it's recommended to derate the device's performance and ensure that the device is properly heat-sinked to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMC7215QIM5X/NOPB Overview

Use the download button to access the LMC7215QIM5X/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC72, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.

Parts related to LMC7215QIM5X/NOPB

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

LMC7215QIM5X/NOPB Alternates

Showing results

Image Part Number Model
Part Image LMC7215IM5X/NOPB Texas Instruments

Comparator, 1 Func, 6000uV Offset-Max, 17000ns Response Time, CMOS, PDSO5
Part Image LMC7215QIM5/NOPB Texas Instruments

Comparator, 1 Func, 6000uV Offset-Max, 12200ns Response Time, CMOS, PDSO5
Part Image LMC7215IM5X National Semiconductor Corporation

Comparator, 1 Func, 8000uV Offset-Max, 17000ns Response Time, CMOS, PDSO5
Part Image LMC7215IM5 National Semiconductor Corporation

Comparator, 1 Func, 8000uV Offset-Max, 17000ns Response Time, CMOS, PDSO5
Part Image LMC7215IM5 Texas Instruments

Comparator, 1 Func, 6000uV Offset-Max, 17000ns Response Time, CMOS, PDSO5
For a full list of alternate parts for LMC7215QIM5X/NOPB, check out Findchips.com
