LMC7221AIM5X - Texas Instruments

Description: Analog Comparators R 926-LMC7221AIM5XNOPB

Download LMC7221AIM5X Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

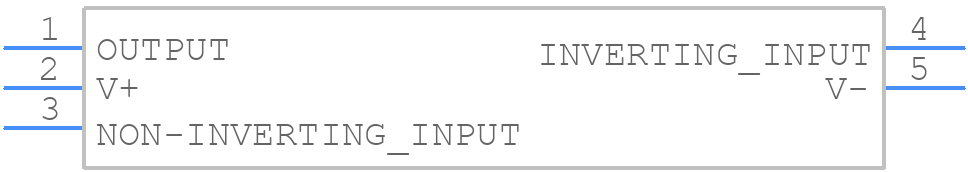

LMC7221AIM5X - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMC7221AIM5X - Texas Instruments PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - DBV (R-PDSO-G5)
click to zoom
3D Models
LMC7221AIM5X - Texas Instruments - 3D model - SOT23 (5-Pin) - DBV (R-PDSO-G5)
click to zoom

LMC7221AIM5X Details

  • Manufacturer Part Number:

    LMC7221AIM5X

  • Brand Name:

    Texas Instruments

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOT-23

  • Package Description:

    SOT-23, 5 PIN

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    4e-8 µA

  • Input Offset Voltage-Max:

    8000 µV

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e0

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    7000 ns

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.22 mm

  • Supply Current-Max:

    0.018 mA

  • Supply Voltage Limit-Max:

    16 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.953 mm

  • Terminal Position:

    DUAL

  • Width:

    1.6 mm

LMC7221AIM5X Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a compact layout with the LMC7221AIM5X placed close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. Keep the input and output traces short and separate to minimize noise. Use a solid ground plane and decouple the power supply pins with 0.1 μF capacitors.
  • The LMC7221AIM5X has a programmable output voltage range. Choose the range based on your application's requirements. For example, if you need a 0-5V output, set the VREF pin to 5V and the VOUT pin will swing between 0V and 5V. Consult the datasheet for specific voltage range settings.
  • The LMC7221AIM5X can drive capacitive loads up to 1000 pF. However, it's recommended to keep the capacitive load below 500 pF to ensure stability and optimal performance. Exceeding this limit may result in oscillations or reduced output swing.
  • The LMC7221AIM5X has a shutdown pin (SHDN) that can be used to power down the device. Connect the SHDN pin to a logic low signal to shut down the device. This reduces the quiescent current to near zero, making it suitable for battery-powered applications.
  • The LMC7221AIM5X is specified to operate over a temperature range of -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMC7221AIM5X Overview

Use the download button to access the LMC7221AIM5X schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMC72, or try a keyword search, such as Comparators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
