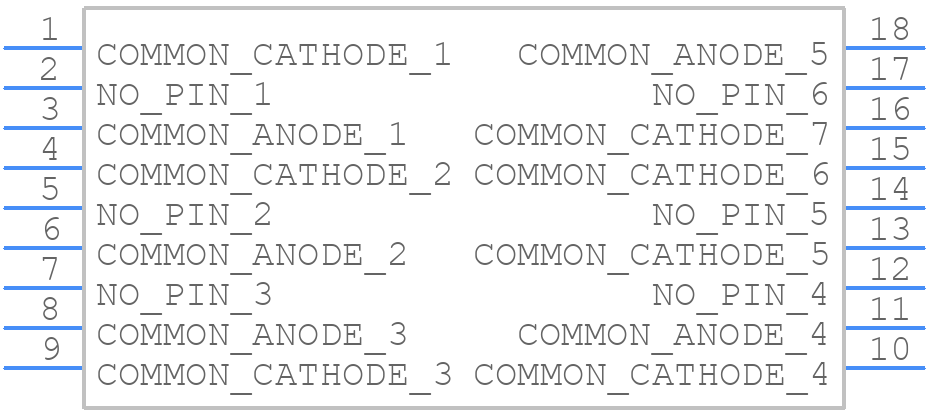

Symbol

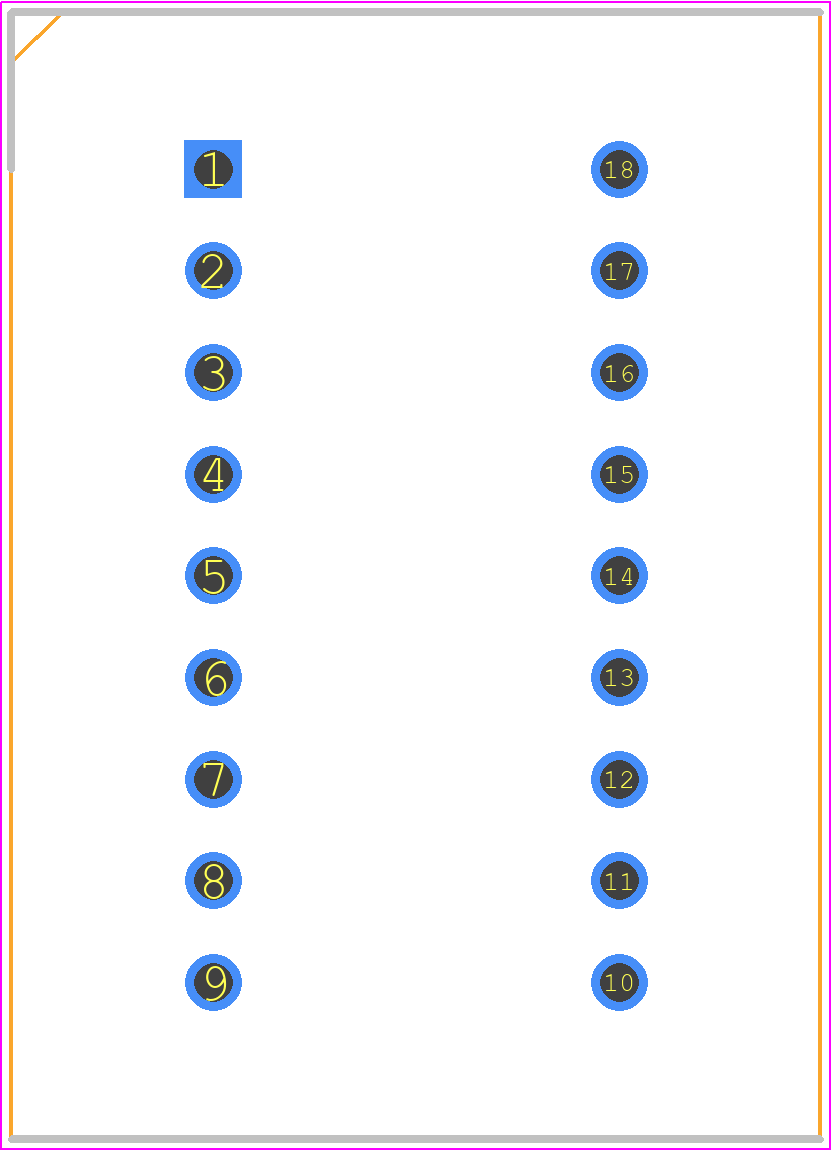

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LMD10057AUE-101A
- Part Number LMD10057AUE-101A
- Manufacturer WENRUN
- Pin Count 18
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - LMD10057AUE-101A
- Released Date Apr 18, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMD10057AUE-101A Details
-
Manufacturer Part Number:
LMD10057AUE-101A
-
Manufacturer:
Jiangsu Wenrun Optoelectronic Co Ltd
Trust Checks
Expert Contribution
System Verified
Community Approved
LMD10057AUE-101A Overview
Use the download button to access the LMD10057AUE-101A schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMD10,
or try a keyword search, such as LED Displays
