Texas Instruments provides a recommended layout and PCB design guide in their application note SLAA523, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
To avoid overheating, ensure that the output current is limited to the recommended maximum value, and provide adequate heat sinking and thermal management. The datasheet provides thermal resistance values and power dissipation calculations to help with this.
While the datasheet specifies the input common-mode voltage range, it's essential to note that the device can operate with input common-mode voltages as low as -0.5V and as high as VCC-1.5V, but the input impedance and noise performance may be affected.
To minimize noise and oscillations, use a low-pass filter at the input, ensure proper PCB layout and grounding, and consider adding a noise-reducing capacitor between the output and the inverting input. Additionally, reduce the gain-bandwidth product by using a lower gain or adding a compensation capacitor.
Yes, the LME49710MA is suitable for audio applications due to its low noise and distortion. Key considerations include ensuring a low noise floor, using a high-quality power supply, and minimizing electromagnetic interference. Additionally, consider using a dedicated audio op-amp like the OPA1612 or THS4032 for more demanding audio applications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LME49710MA Overview

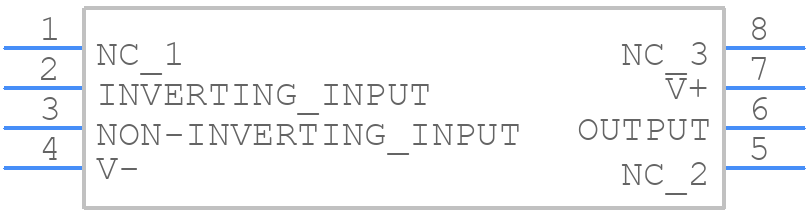

Use the download button to access the LME49710MA schematic symbol, PCB footprint, and 3D model.
