A good PCB layout for the LME49720 involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog ground plane to minimize noise and interference.
To ensure stability, make sure to follow the recommended compensation capacitor values and placement, and use a low-ESR capacitor for the output filter. Additionally, ensure that the input and output impedance are matched, and the device is operated within the recommended supply voltage range.
The maximum power dissipation of the LME49720 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, it's recommended to derate the power dissipation based on the actual operating conditions.
Yes, the LME49720 can be used as a unity-gain buffer. However, it's recommended to add a small capacitor (typically 10-100pF) in parallel with the feedback resistor to ensure stability. Additionally, make sure to follow the recommended layout and compensation guidelines to minimize noise and oscillation.
To protect the LME49720 from overvoltage and ESD, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) diode at the input and output pins. Additionally, ensure that the device is handled and stored in an ESD-safe environment, and follow proper ESD protection procedures during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LME49720MAX/NOPB Overview

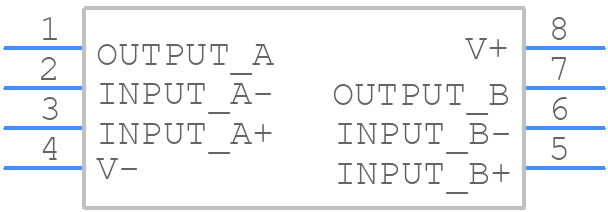

Use the download button to access the LME49720MAX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LME49,
or try a keyword search, such as Operational Amplifiers
