Texas Instruments provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, trace routing, and thermal management. Additionally, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding noise coupling.
The LME49724MRX can deliver high output currents, which can cause overheating if not properly managed. Ensure that the PCB has adequate thermal dissipation, and consider adding heat sinks or thermal vias to the design. Also, use current-limiting resistors or other protection mechanisms to prevent excessive current draw.
To minimize noise and oscillations, use a combination of techniques such as: (1) bypassing the power supply pins with capacitors, (2) using a low-pass filter at the input, (3) adding a series resistor and capacitor at the output, and (4) ensuring a stable and low-impedance power supply. Additionally, consider using a noise-reducing op-amp topology, such as a differential amplifier.
Yes, the LME49724MRX can be used as a unity-gain buffer, but it's essential to ensure that the input impedance is high enough to prevent loading the source. Also, consider adding a small capacitor in parallel with the feedback resistor to improve stability and reduce oscillations.
Choose feedback resistors that provide a stable and accurate gain, while also considering the op-amp's input impedance, output impedance, and noise performance. A good starting point is to use resistors with a value between 1 kΩ and 10 kΩ, and then adjust based on the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LME49724MRX Overview

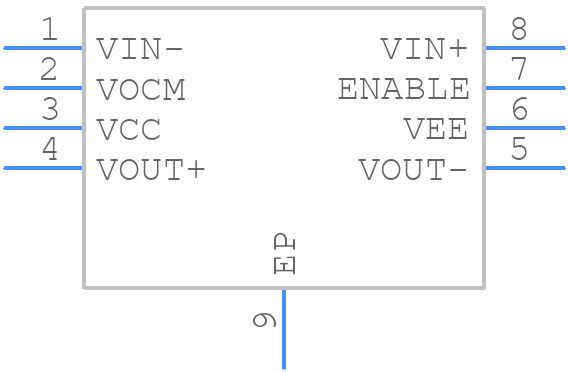

Use the download button to access the LME49724MRX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LME49,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
