Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the ground plane to the thermal pad.
The LMG2610RRGR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. Additionally, the device should be mounted on a heat sink or a metal core PCB to further improve thermal management.
The maximum input power that the LMG2610RRGR can handle is not explicitly stated in the datasheet, but it can be calculated based on the device's maximum voltage and current ratings. As a general rule, it's recommended to derate the input power to ensure reliable operation.
Yes, the LMG2610RRGR is suitable for switching power supply applications due to its high-frequency operation and low power loss. However, the device's switching frequency and duty cycle must be carefully controlled to ensure reliable operation and minimize electromagnetic interference (EMI).
To troubleshoot issues with the LMG2610RRGR, start by checking the device's operating conditions, such as input voltage, current, and temperature. Use oscilloscopes and thermal imaging cameras to monitor the device's behavior and identify potential issues. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMG2610RRGR Overview

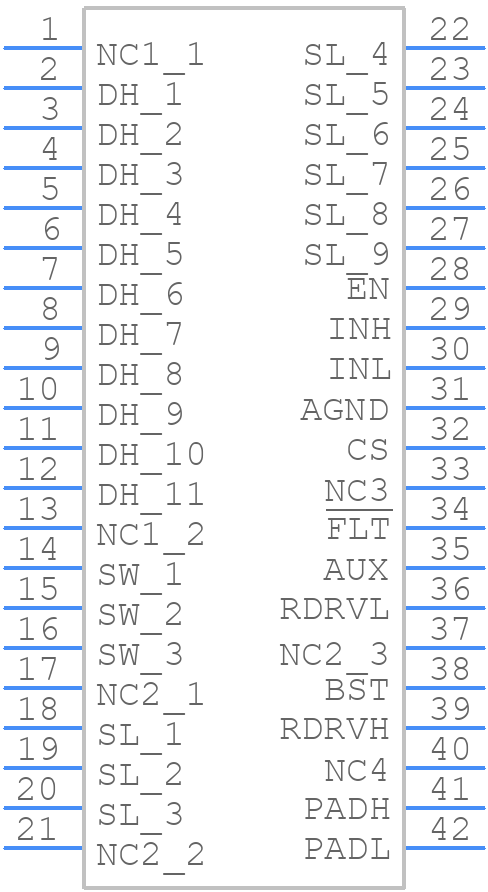

Use the download button to access the LMG2610RRGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG26,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
