Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and equivalent series resistance (ESR). Texas Instruments recommends using low-ESR capacitors with a voltage rating of at least 2x the maximum input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 22uF to 47uF for the output capacitor.
The LMG2610RRGT is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal management system used. It is recommended to follow the thermal design guidelines in the datasheet and application notes to ensure reliable operation within the specified temperature range.
The LMG2610RRGT has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. The recommended values for the resistor and capacitor can be found in the datasheet, and the OCP threshold can be adjusted by changing the value of the resistor.
The recommended input voltage range for the LMG2610RRGT is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V with reduced performance. It is recommended to follow the input voltage range specified in the datasheet to ensure reliable operation and to avoid damage to the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMG2610RRGT Overview

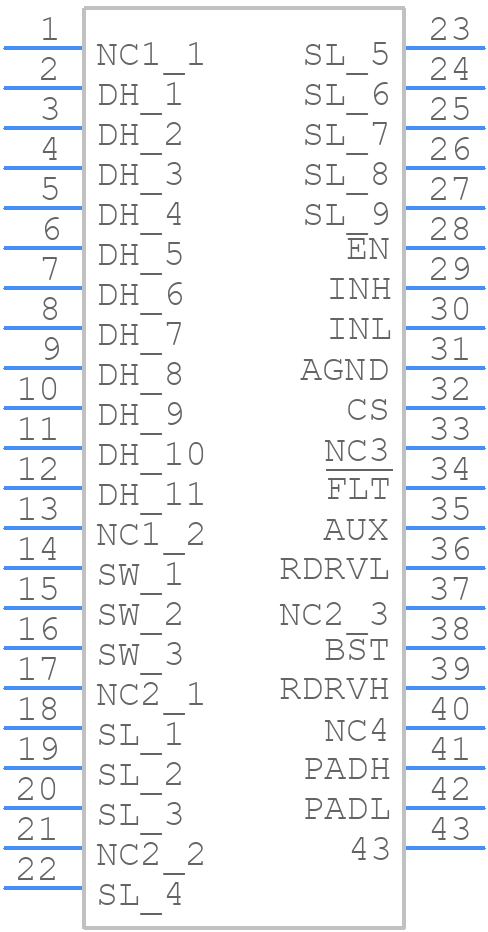

Use the download button to access the LMG2610RRGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG26,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
