The maximum operating temperature range for the LMG3425R030RQZT is -40°C to 150°C, as specified in the datasheet. However, it's recommended to operate the device within a temperature range of -20°C to 125°C for optimal performance and reliability.
To ensure proper biasing, follow the recommended operating conditions and biasing schemes outlined in the datasheet. Additionally, ensure that the input voltage (VIN) is within the recommended range of 12V to 42V, and that the output voltage (VOUT) is set to the desired value using the feedback resistors.
The maximum output current capability of the LMG3425R030RQZT is 30A, as specified in the datasheet. However, the actual output current capability may be limited by the thermal performance of the device and the PCB design.
To minimize EMI, follow proper PCB design and layout practices, such as using a solid ground plane, minimizing loop areas, and using shielding and filtering components as necessary. Additionally, ensure that the device is properly decoupled and that the input and output capacitors are selected to minimize noise and ringing.
The recommended layout and placement for the LMG3425R030RQZT on a PCB involves placing the device near the input capacitors and output inductors, and ensuring that the high-current paths are minimized and well-separated from sensitive analog signals. Refer to the datasheet and application notes for more detailed guidance on PCB layout and placement.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMG3425R030RQZT Overview

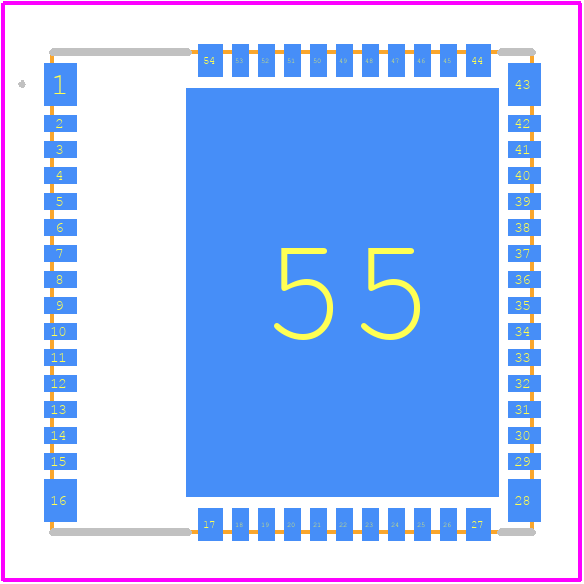

Use the download button to access the LMG3425R030RQZT schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG34,
or try a keyword search, such as Power Field-Effect Transistors
