LMG3522R050RQSR - Texas Instruments

Description: Power Management Specialized - PMIC 650-V 50-m? GaN FET with integrated driver, protection and temperature reporting 52-VQFN -40 to 125

Download LMG3522R050RQSR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
LMG3522R050RQSR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

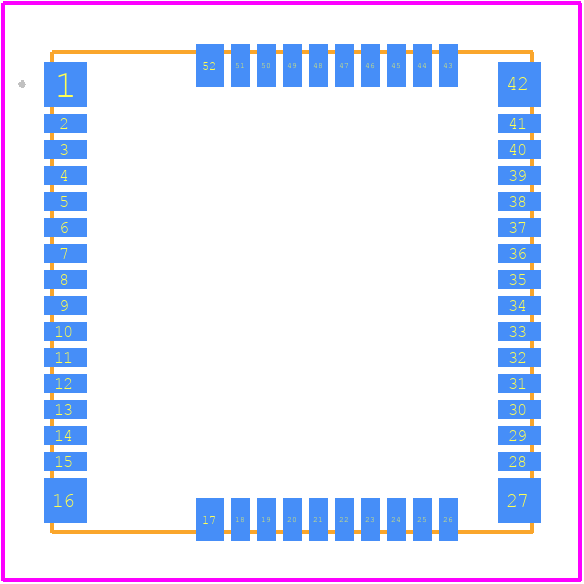

LMG3522R050RQSR - Texas Instruments PCB footprint - Other - Other - RQS0052C_2024-1
click to zoom
3D Models
LMG3522R050RQSR - Texas Instruments - 3D model - Other - RQS0052C_2024-1
click to zoom

LMG3522R050RQSR Details

  • Manufacturer Part Number:

    LMG3522R050RQSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Configuration:

    COMPLEX

  • DS Breakdown Voltage-Min:

    650 V

  • Drain-source On Resistance-Max:

    0.055 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    S-PQCC-N52

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Elements:

    1

  • Number of Terminals:

    52

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    GALLIUM NITRIDE

  • Turn-off Time-Max (toff):

    75 ns

  • Turn-on Time-Max (ton):

    49 ns

LMG3522R050RQSR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to minimize EMI and thermal issues.
  • The selection of the inductor depends on the specific application requirements, such as the switching frequency, output voltage, and current. Texas Instruments provides a inductor selection guide in the application note SLVAUH6, which includes a step-by-step process for selecting the right inductor.
  • The maximum junction temperature of the LMG3522R050RQSR is 150°C, as specified in the datasheet. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to prevent thermal runaway.
  • Yes, the LMG3522R050RQSR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is manufactured using a automotive-qualified process.
  • The LMG3522R050RQSR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and ground. The value of the resistor determines the overcurrent threshold. Texas Instruments provides more information on implementing overcurrent protection in the application note SLVAUH5.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMG3522R050RQSR Overview

Use the download button to access the LMG3522R050RQSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG35, or try a keyword search, such as Power Field-Effect Transistors

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
