LMG5200MOFT - Texas Instruments

Description: Half Bridge Driver Synchronous Buck Converters Gallium Nitride (GaN) FETs 9-QFN (8x6) , 4.75V ~ 5.25V , 10A , -40°C ~ 125°C (TJ)

Download LMG5200MOFT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

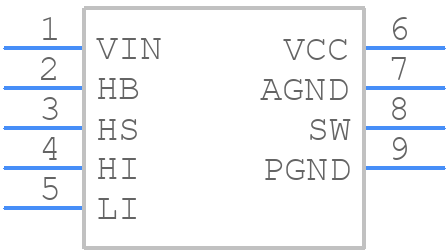

LMG5200MOFT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMG5200MOFT - Texas Instruments PCB footprint - Other - Other - MOF0009A_2026-1.1
click to zoom
3D Models
LMG5200MOFT - Texas Instruments - 3D model - Other - MOF0009A_2026-1.1
click to zoom

LMG5200MOFT Details

  • Manufacturer Part Number:

    LMG5200MOFT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-11-09

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-XBCC-B9

  • JESD-609 Code:

    e4

  • Length:

    8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    9

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    80 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Gold (Ni/Au)

  • Terminal Form:

    BUTT

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6 mm

LMG5200MOFT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise and coupling.
  • Monitor the input voltage, output voltage, and current to ensure they are within the recommended operating ranges. Use thermal monitoring and shutdown mechanisms to prevent overheating and overcurrent conditions.
  • Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads. Monitor the junction temperature and use thermal shutdown mechanisms to prevent overheating.
  • Use a shielded enclosure, keep the layout compact, and minimize loop areas. Use EMI filters and shielding on the input and output lines. Ensure good grounding and decoupling to reduce noise and radiation.
  • Use low-ESR capacitors with a minimum capacitance of 10uF for the input and output. Choose capacitors with a voltage rating that exceeds the maximum input and output voltages.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMG5200MOFT Overview

Use the download button to access the LMG5200MOFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMG52, or try a keyword search, such as Other Signal Circuits
