- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LMH0002MA
- Part Number LMH0002MA
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P620X175-8N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH0002MA Details
-
Manufacturer Part Number:
LMH0002MA
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
PLASTIC, MS-012AA, SOIC-8
-
Pin Count:
8
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Differential Output:
YES
LMH0002MA Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common-mode choke or a ferrite bead to filter out high-frequency noise.
-
The LMH0002MA requires a bias voltage of 5V to 12V, and the recommended bias current is 10mA to 20mA. It's also important to ensure that the bias voltage is well-regulated and noise-free to prevent affecting the device's performance.
-
The LMH0002MA is rated for operation from -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
-
The LMH0002MA is a commercial-grade device and may not meet the requirements for high-reliability or aerospace applications. Texas Instruments offers other devices that are specifically designed and qualified for these types of applications, such as the LMH0002QMLV.
-
Common issues with the LMH0002MA can often be traced back to poor PCB layout, inadequate biasing, or incorrect termination. Texas Instruments recommends following the recommended PCB layout and biasing guidelines, and using a scope or spectrum analyzer to troubleshoot issues. Additionally, the device's datasheet provides guidance on troubleshooting common issues.
Trust Checks
System Verified
LMH0002MA Overview

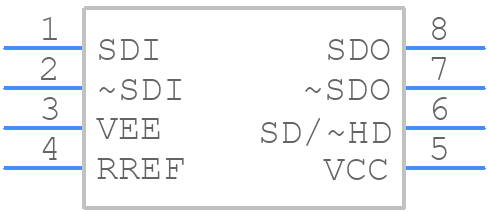

Use the download button to access the LMH0002MA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Line Driver or Receivers
