LMH0024MA/NOPB - Texas Instruments

Description: LMH0024 3.3V SMPTE 259M / 344M Adaptive Cable Equalizer

Download LMH0024MA/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

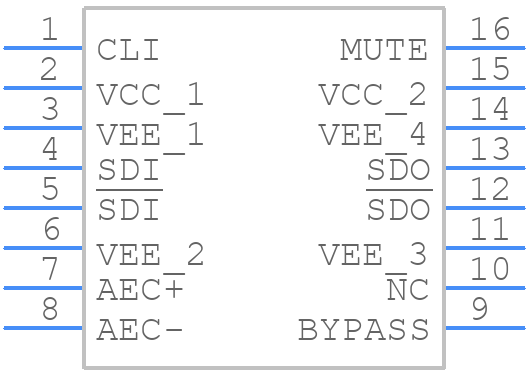

Symbol
LMH0024MA/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0024MA/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - M16A
click to zoom
3D Models
LMH0024MA/NOPB - Texas Instruments - 3D model - Small Outline Packages - M16A
click to zoom

LMH0024MA/NOPB Details

  • Manufacturer Part Number:

    LMH0024MA/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    540000 Mbps

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    0.077 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.91 mm

LMH0024MA/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0024MA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is between 5V and 12V. Additionally, ensure that the input and output impedances are matched to minimize signal reflections.
  • The LMH0024MA can operate up to 400 MHz, but the maximum operating frequency depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 300 MHz for optimal performance.
  • The LMH0024MA has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 125°C. Use a heat sink or a thermal pad to dissipate heat, and ensure good airflow around the device.
  • The LMH0024MA has internal ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0024MA/NOPB Overview

Use the download button to access the LMH0024MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00, or try a keyword search, such as Analog Transmission Interfaces
