LMH0026MH/NOPB - Texas Instruments

Description: SD SDI Reclocker with Dual Differential Outputs

Download LMH0026MH/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

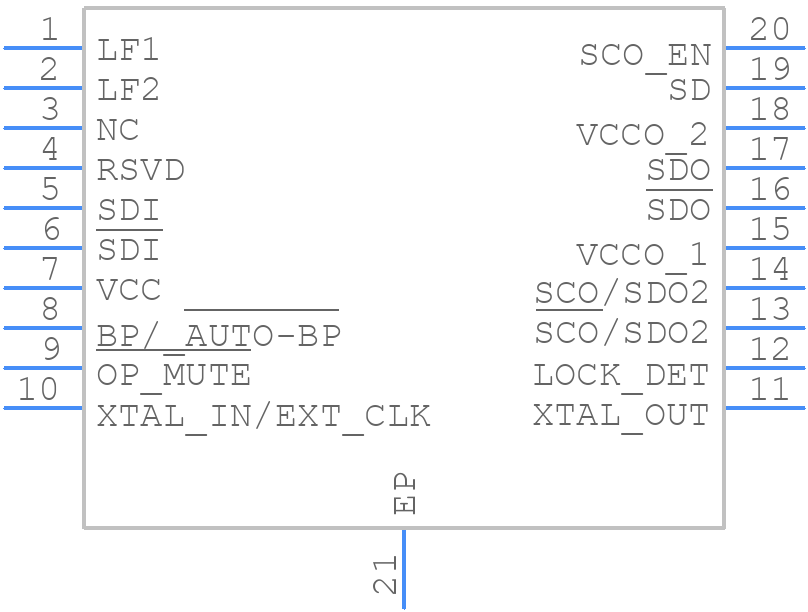

LMH0026MH/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0026MH/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP (R-PDSO-G20)_2-
click to zoom
3D Models
LMH0026MH/NOPB - Texas Instruments - 3D model - Small Outline Packages - PWP (R-PDSO-G20)_2-
click to zoom

LMH0026MH/NOPB Details

  • Manufacturer Part Number:

    LMH0026MH/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP20,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

LMH0026MH/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke and a shielded cable for the input and output connections.
  • The LMH0026MH requires a bias voltage of 5V to 12V, and the recommended bias current is 10mA to 20mA. It's also important to ensure that the bias voltage is well-regulated and noise-free to prevent any degradation in performance.
  • The LMH0026MH is rated for operation from -40°C to 85°C, but it's recommended to operate it within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Common issues with the LMH0026MH can be troubleshooted by checking the PCB layout, ensuring proper biasing and termination, and verifying that the input and output signals are within the recommended specifications. Additionally, using a spectrum analyzer or oscilloscope can help identify any issues with the signal integrity.
  • Yes, the LMH0026MH is a high-frequency device and requires careful consideration of EMI/EMC. It's recommended to use a shielded enclosure, keep the input and output traces as short as possible, and use a common mode choke to reduce emissions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0026MH/NOPB Overview

Use the download button to access the LMH0026MH/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00, or try a keyword search, such as Other Consumer ICs
