- Part Number LMH0034MA
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P600X175-16N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
LMH0034MA Details
-
Manufacturer Part Number:
LMH0034MA
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-16
-
Pin Count:
16
-
ECCN Code:
5A991.B.1
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Data Rate:
1485000 Mbps
LMH0034MA Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLWA043, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The LMH0034MA requires a stable power supply with adequate decoupling capacitors. TI recommends using a 0.1uF ceramic capacitor and a 10uF tantalum capacitor in parallel, placed as close as possible to the device's power pins.
-
The maximum cable length supported by the LMH0034MA depends on the specific application and the type of cable used. However, as a general guideline, TI recommends keeping the cable length below 10 meters to ensure reliable operation.
-
The LMH0034MA is rated for operation up to 85°C, but it can be derated for higher temperatures. TI recommends consulting the device's thermal derating curve in the datasheet to determine the maximum operating temperature for a specific application.
-
TI provides a troubleshooting guide in the application note SLWA044, which covers common issues and their solutions, such as signal integrity problems, power supply issues, and clock jitter.
Trust Checks
System Verified
LMH0034MA Overview

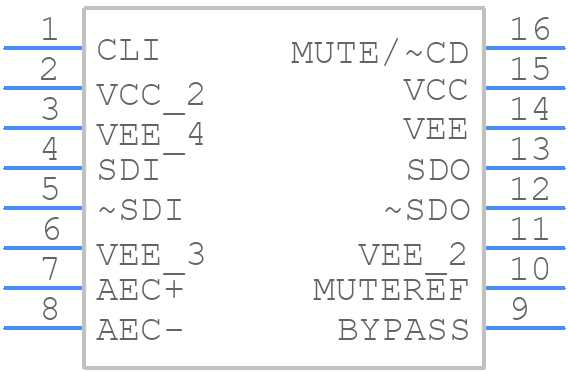

Use the download button to access the LMH0034MA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Analog Transmission Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
