SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
3.465 V
Supply Voltage-Min (Vsup):
3.135 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
LMH0046MHX/NOPB Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLWA043, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The LMH0046MHX/NOPB requires a stable power supply with adequate decoupling to ensure proper operation. TI recommends using a low-ESR capacitor (e.g., 0.1 μF) close to the device's power pins, and a bulk capacitor (e.g., 10 μF) farther away from the device. Additionally, ensure that the power supply rails are well-filtered and regulated.
The LMH0046MHX/NOPB is rated for operation from -40°C to 85°C. However, it's essential to consider the device's thermal characteristics, such as junction temperature (Tj), to ensure reliable operation. TI provides thermal design guidelines in the datasheet and application notes.
TI recommends following a structured troubleshooting approach, including: 1) verifying the power supply and decoupling, 2) checking the PCB layout and routing, 3) ensuring proper termination and loading, and 4) using oscilloscope measurements to identify the root cause of the issue. TI's application notes and technical support resources can provide additional guidance.
Yes, the LMH0046MHX/NOPB is a high-frequency device that requires careful attention to EMI/EMC design considerations. TI recommends following best practices for PCB layout, shielding, and filtering to minimize EMI emissions and ensure compliance with relevant regulatory standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0046MHX/NOPB Overview

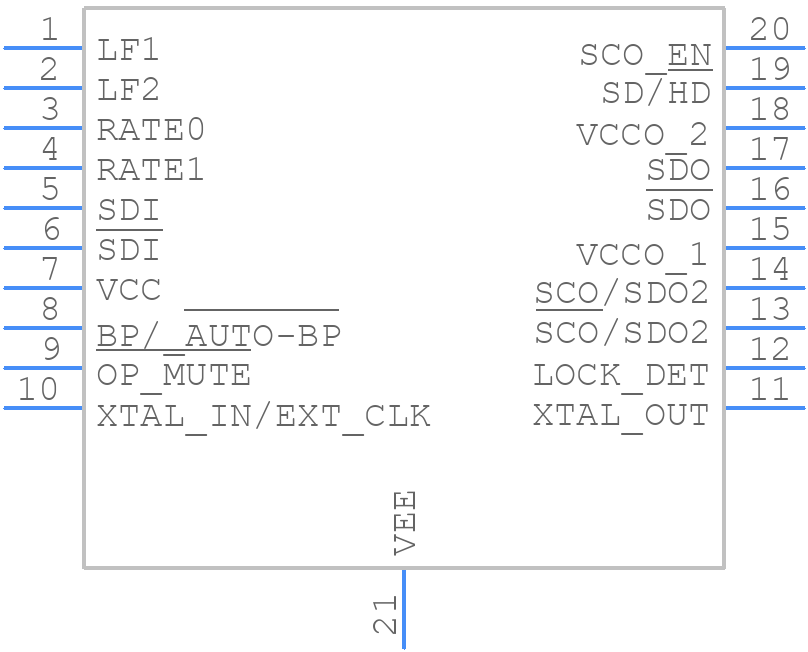

Use the download button to access the LMH0046MHX/NOPB schematic symbol, PCB footprint, and 3D model.
