A good PCB layout for the LMH0074SQE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
Proper termination of the LMH0074SQE/NOPB involves using a 50-ohm termination resistor at the output, and a 75-ohm termination resistor at the input. Additionally, using a series resistor and a shunt capacitor at the output can help improve signal integrity.
The maximum cable length that can be driven by the LMH0074SQE/NOPB depends on the frequency of operation and the type of cable used. As a general rule, the maximum cable length is around 10-15 meters at frequencies up to 1.5 GHz. However, this can be extended using repeaters or amplifiers.
The LMH0074SQE/NOPB can generate significant heat during operation. To handle this, it is recommended to use a heat sink with a thermal resistance of less than 10°C/W, and to ensure good airflow around the device. Additionally, using a thermal interface material can help improve heat transfer.
The LMH0074SQE/NOPB has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, an ESD mat, and storing the device in an ESD-safe environment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0074SQE/NOPB Overview

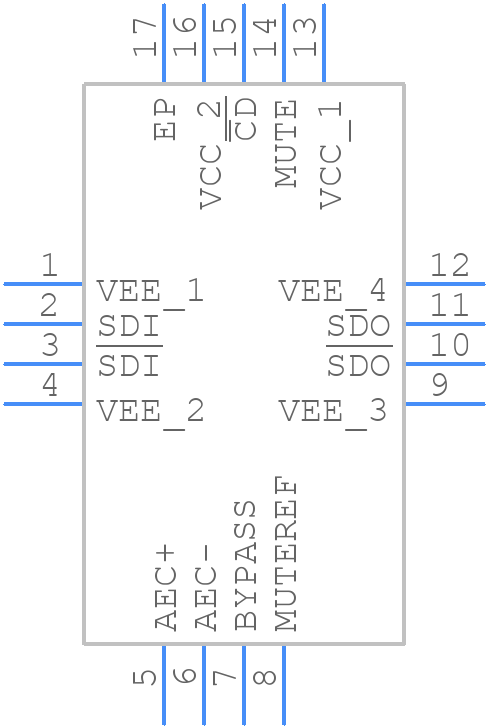

Use the download button to access the LMH0074SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH00,
or try a keyword search, such as Analog Transmission Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
