A good PCB layout for the LMH0346SQ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to reduce noise.
The maximum cable length supported by the LMH0346SQ depends on the specific application and signal frequency. As a general guideline, the device can support cable lengths up to 100 meters at lower frequencies (e.g., SD-SDI) and up to 30 meters at higher frequencies (e.g., HD-SDI).
To troubleshoot issues with the LMH0346SQ, start by checking the power supply and decoupling, then verify the input signal quality and cable integrity. Use an oscilloscope to analyze the signal waveform and look for signs of distortion, noise, or jitter.
While the LMH0346SQ is primarily designed for SDI applications, it can be used in other high-speed digital applications with proper signal conditioning and adaptation. However, Texas Instruments does not provide direct support for non-SDI applications, and additional design and testing may be required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0346SQ/NOPB Overview

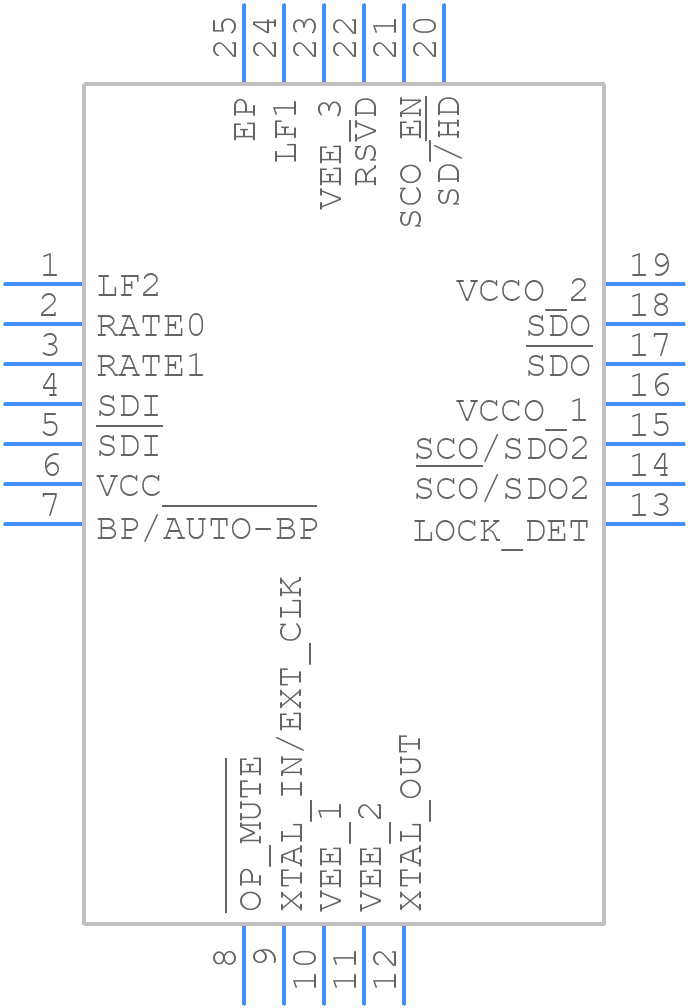

Use the download button to access the LMH0346SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
