LMH0346SQE/NOPB - Texas Instruments

Description: 3 Gbps HD/SD SDI Reclocker with Dual Differential Outputs

Download LMH0346SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

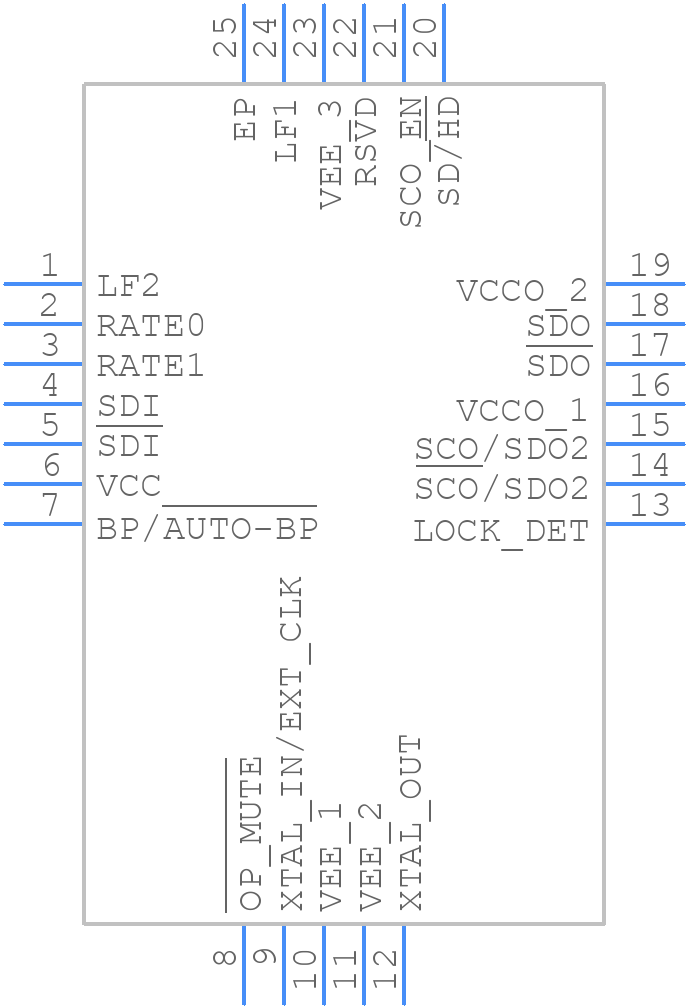

LMH0346SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0346SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NHZ0024B_2021
click to zoom
3D Models
LMH0346SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - NHZ0024B_2021
click to zoom

LMH0346SQE/NOPB Details

  • Manufacturer Part Number:

    LMH0346SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    126 mA

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMH0346SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0346SQE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper power and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to filter out high-frequency noise.
  • The maximum cable length supported by the LMH0346SQE depends on the specific application and the type of cable used. As a general guideline, the device can support cable lengths up to 100 meters (330 feet) for HD-SDI and 300 meters (980 feet) for SD-SDI, but this may vary depending on the specific implementation.
  • To troubleshoot issues with the LMH0346SQE, start by checking the power supply and decoupling, then verify the input signal quality and cable integrity. Use an oscilloscope to analyze the signal waveform and check for signs of distortion or noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The LMH0346SQE is specifically designed for SDI applications and is not recommended for use in non-SDI applications like HDMI or DisplayPort. Using the device in a non-SDI application may result in reduced performance or failure.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0346SQE/NOPB Overview

Use the download button to access the LMH0346SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03, or try a keyword search, such as Other Consumer ICs
