A good PCB layout for the LMH0384SQE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. Additionally, it's recommended to place the device close to the analog signal sources and to use a low-ESR capacitor for power supply decoupling.
To ensure proper powering and decoupling of the LMH0384SQE, use a low-ESR capacitor (e.g., 0.1 μF) between the VCC and GND pins, and a larger capacitor (e.g., 10 μF) between the VCC and GND pins for bulk decoupling. Also, ensure that the power supply is clean and well-regulated.
The LMH0384SQE can handle clock frequencies up to 165 MHz, but the maximum frequency may vary depending on the specific application and PCB layout. It's recommended to consult the datasheet and perform thorough testing to ensure reliable operation at high frequencies.
To optimize the LMH0384SQE for low-power operation, use the lowest possible clock frequency, disable unused features, and adjust the bias current to the minimum required for the application. Additionally, consider using a lower power supply voltage and optimizing the PCB layout for minimal power consumption.
The recommended operating temperature range for the LMH0384SQE is -40°C to 85°C. However, the device can operate at temperatures up to 125°C, but with reduced performance and reliability. It's essential to ensure proper thermal management and heat dissipation to maintain reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0384SQE/NOPB Overview

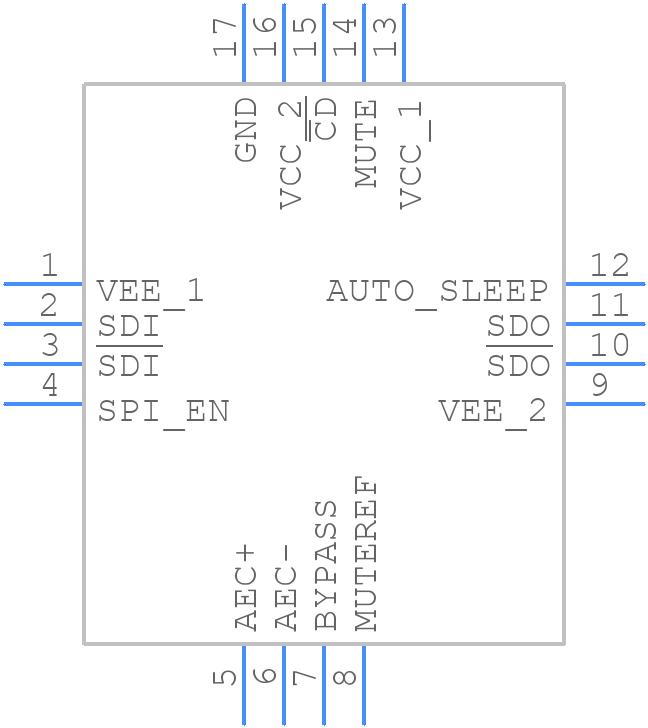

Use the download button to access the LMH0384SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Analog Transmission Interfaces
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
