LMH0395SQE/NOPB - Texas Instruments

Description: 3G HD/SD SDI Dual Output Low Power Extended Reach Adaptive Cable Equalizer

Download LMH0395SQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

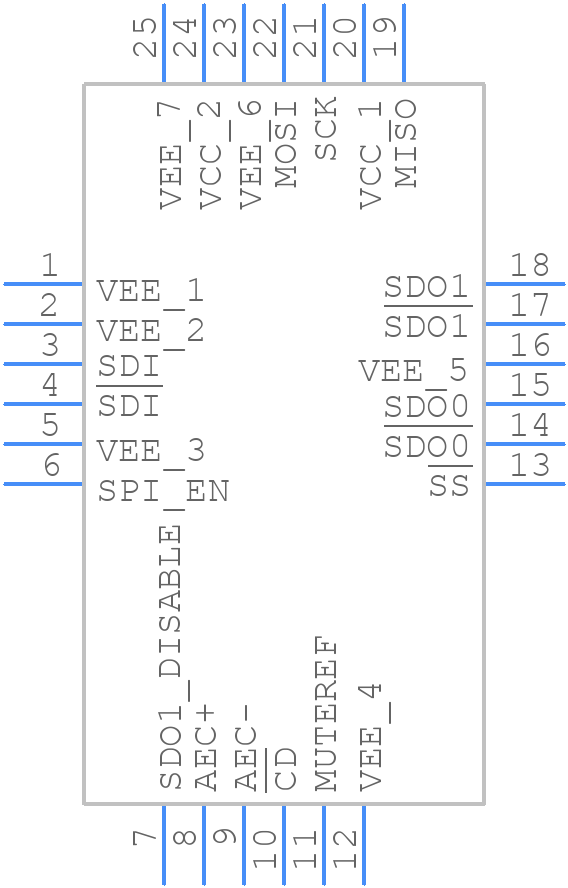

LMH0395SQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH0395SQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTW0024
click to zoom
3D Models
LMH0395SQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RTW0024
click to zoom

LMH0395SQE/NOPB Details

  • Manufacturer Part Number:

    LMH0395SQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    2970000 Mbps

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.078 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    LINE EQUALIZER

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

LMH0395SQE/NOPB Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH0395SQE involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces to reduce noise and interference.
  • To ensure proper powering and decoupling, use a high-quality power supply with low ripple and noise, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device's power pins.
  • The maximum cable length for the LMH0395SQE's output signals depends on the specific application and signal frequency. As a general rule, keep cable lengths as short as possible (less than 10 inches) to minimize signal degradation and noise pickup.
  • To troubleshoot issues with the LMH0395SQE's output signals, use an oscilloscope to check for signal integrity, noise, and distortion. Verify that the input signals are correct and that the device is properly powered and decoupled.
  • The LMH0395SQE is rated for operation up to 85°C. However, it's essential to ensure proper heat sinking and thermal management to prevent overheating, especially in high-temperature environments.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH0395SQE/NOPB Overview

Use the download button to access the LMH0395SQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03, or try a keyword search, such as Analog Transmission Interfaces
