A good PCB layout for the LMH0397RTVT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded enclosure and keeping the device away from high-frequency sources can help minimize EMI.
To optimize the LMH0397RTVT for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current to the minimum required for the application. Additionally, using a low-dropout regulator and minimizing the voltage supply can also help reduce power consumption.
The maximum cable length supported by the LMH0397RTVT depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters for HD resolutions and up to 50 meters for 4K resolutions.
To troubleshoot issues with the LMH0397RTVT, start by checking the power supply and clock signals, then verify the video input and output connections. Use an oscilloscope to check the video signals and clock frequencies. If the issue persists, check the device's temperature and ensure it is within the recommended operating range.
Yes, the LMH0397RTVT can be used in a multi-channel video application. The device has a built-in multiplexer that allows it to support up to 4 video channels. However, the specific implementation will depend on the application requirements and the number of channels needed.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH0397RTVT Overview

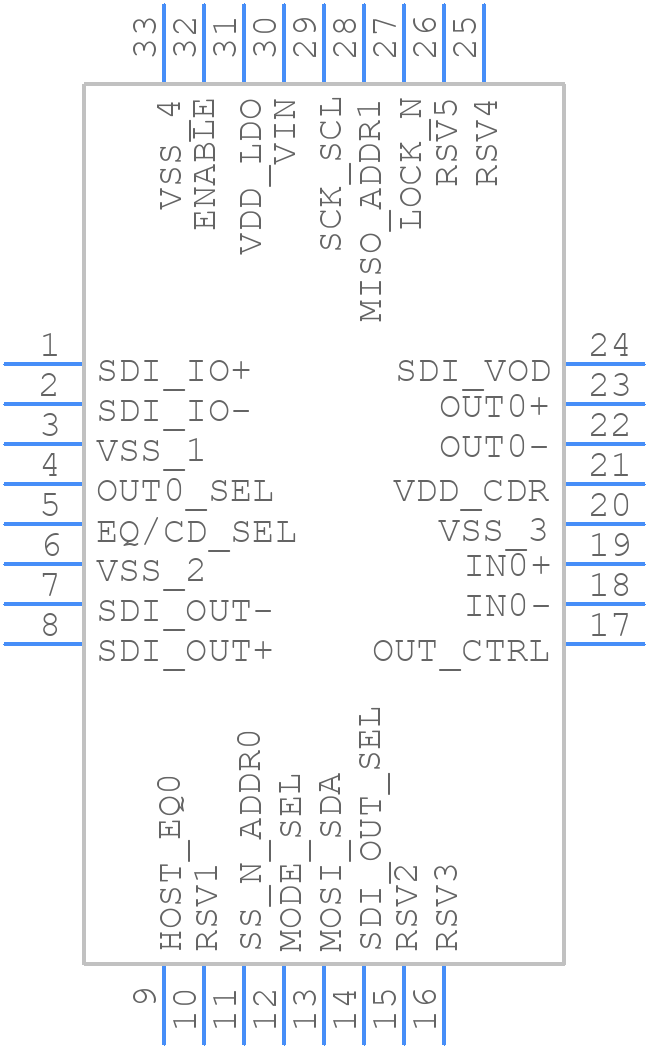

Use the download button to access the LMH0397RTVT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH03,
or try a keyword search, such as Other Interface ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
