LMH1980MMX/NOPB - Texas Instruments

Description: IC VIDEO SYNC 10VSSOP

Download LMH1980MMX/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

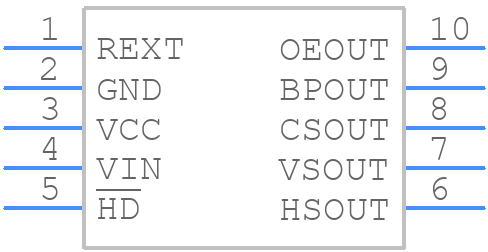

LMH1980MMX/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH1980MMX/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom
3D Models
LMH1980MMX/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGS (S-PDSO-G10)
click to zoom

LMH1980MMX/NOPB Details

  • Manufacturer Part Number:

    LMH1980MMX/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP, TSSOP10,.19,20

  • Pin Count:

    10

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    SYNC SEPARATOR IC

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max:

    14 mA

  • Supply Voltage-Max (Vsup):

    5 V

  • Supply Voltage-Min (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LMH1980MMX/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the video signals.
  • The LMH1980MMX/NOPB requires a 3.3V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) for power supply decoupling. Additionally, a 10uF capacitor is recommended for filtering the power supply. It's also important to ensure that the power supply is clean and free of noise.
  • The LMH1980MMX/NOPB supports cable lengths up to 100 meters, but this can vary depending on the specific application and the quality of the cable. It's recommended to use high-quality, shielded cables to minimize signal degradation.
  • The LMH1980MMX/NOPB is a flexible device that can be configured for various video formats using the I2C interface. The specific configuration will depend on the desired video format and the requirements of the application. Texas Instruments provides a detailed programming guide in the datasheet and application notes.
  • The typical power consumption of the LMH1980MMX/NOPB is around 350mW, but this can vary depending on the specific application and the operating conditions. It's recommended to consult the datasheet and application notes for more detailed information on power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH1980MMX/NOPB Overview

Use the download button to access the LMH1980MMX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH19, or try a keyword search, such as Signal Separator ICs
