LMH32401IRGTT - Texas Instruments

Description: Transimpedance Amplifiers Programmable gain, differential output high-speed transimpedance amplifier

Download LMH32401IRGTT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

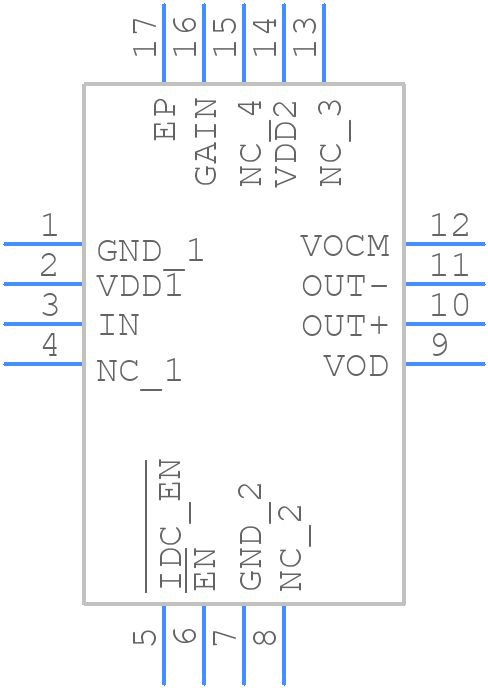

Symbol
LMH32401IRGTT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
LMH32401IRGTT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGT0016C height 1_1
click to zoom
3D Models
LMH32401IRGTT - Texas Instruments - 3D model - Quad Flat No-Lead - RGT0016C height 1_1
click to zoom

LMH32401IRGTT Details

  • Manufacturer Part Number:

    LMH32401IRGTT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-10-24

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    80 µA

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    20000 µV

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1 mm

  • Slew Rate-Nom:

    1100 V/us

  • Subcategory:

    Operational Amplifier

  • Supply Current-Max:

    33.5 mA

  • Supply Voltage Limit-Max:

    3.55 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Unity Gain BW-Nom:

    450000

  • Wideband:

    NO

  • Width:

    3 mm

LMH32401IRGTT Frequently Asked Questions (FAQs)

  • A good PCB layout for the LMH32401IRGTT involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • The choice of input and output capacitors depends on the specific application and frequency range. TI recommends using low-ESR capacitors with a value of 10uF to 22uF for the input and output capacitors. The datasheet provides more information on capacitor selection.
  • The maximum power dissipation of the LMH32401IRGTT is dependent on the ambient temperature and the thermal resistance of the package. TI provides a thermal derating curve in the datasheet to help determine the maximum power dissipation for a given application.
  • The LMH32401IRGTT is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. TI recommends using the device within the recommended operating temperature range for optimal performance and reliability.
  • Common issues with the LMH32401IRGTT can often be traced back to poor PCB layout, inadequate decoupling, or incorrect component selection. TI provides troubleshooting guides and application notes to help identify and resolve common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LMH32401IRGTT Overview

Use the download button to access the LMH32401IRGTT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH32, or try a keyword search, such as Operational Amplifiers
