Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for signal traces.
The LMH32404IRHFR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, ensure good airflow around the device and consider using a heat sink if operating at high temperatures or high currents.
The datasheet recommends using a 50-ohm termination resistor at the output of the device, and a 50-ohm transmission line for the input signal. Additionally, consider using a DC-blocking capacitor at the input to prevent DC voltage from affecting the signal.
To ensure signal integrity, use a low-jitter clock source, minimize signal trace lengths, and use signal integrity analysis tools to simulate and optimize the signal path. Additionally, consider using a signal conditioning circuit, such as a filter or amplifier, to improve signal quality.
The datasheet recommends using a 0.1-uF ceramic capacitor and a 10-uF electrolytic capacitor in parallel, placed close to the device's power pins, to decouple the power supply and reduce noise.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH32404IRHFR Overview

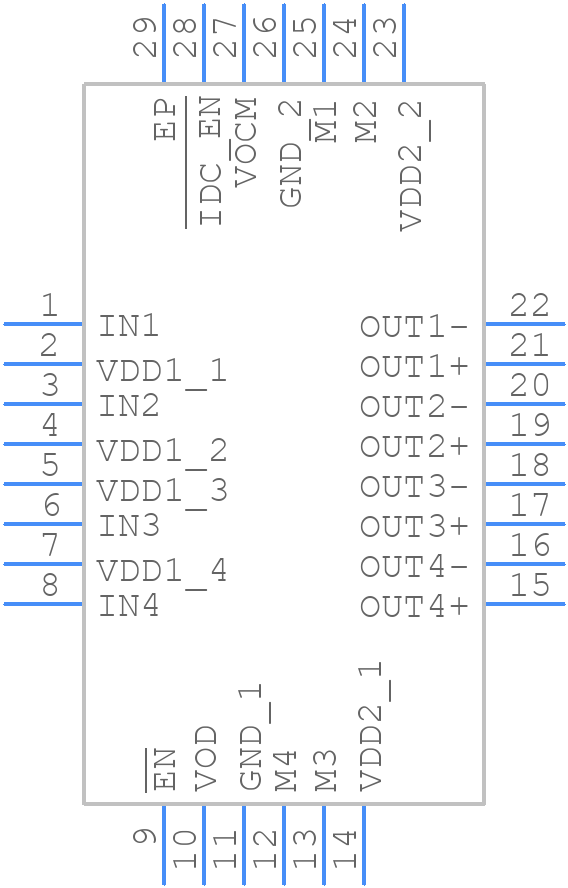

Use the download button to access the LMH32404IRHFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH32,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
