Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using decoupling capacitors close to the device.
The LMH32404QWRHFRQ1 requires a 3.3V power supply, and it's recommended to use a low-ESR capacitor (e.g., 0.1uF) close to the device for decoupling. Additionally, a 10uF capacitor can be used in parallel to filter out noise.
The LMH32404QWRHFRQ1 is rated for operation from -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability.
Common issues with the LMH32404QWRHFRQ1 can be caused by improper PCB layout, inadequate decoupling, or incorrect component values. Use an oscilloscope to measure the output waveform and check for signs of oscillation or instability. Consult the datasheet and application notes for troubleshooting guidelines.
The LMH32404QWRHFRQ1 is an automotive-grade device, but it's essential to follow Texas Instruments' guidelines for high-reliability applications, including using the device within its recommended operating conditions, following proper PCB design and manufacturing practices, and performing thorough testing and validation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH32404QWRHFRQ1 Overview

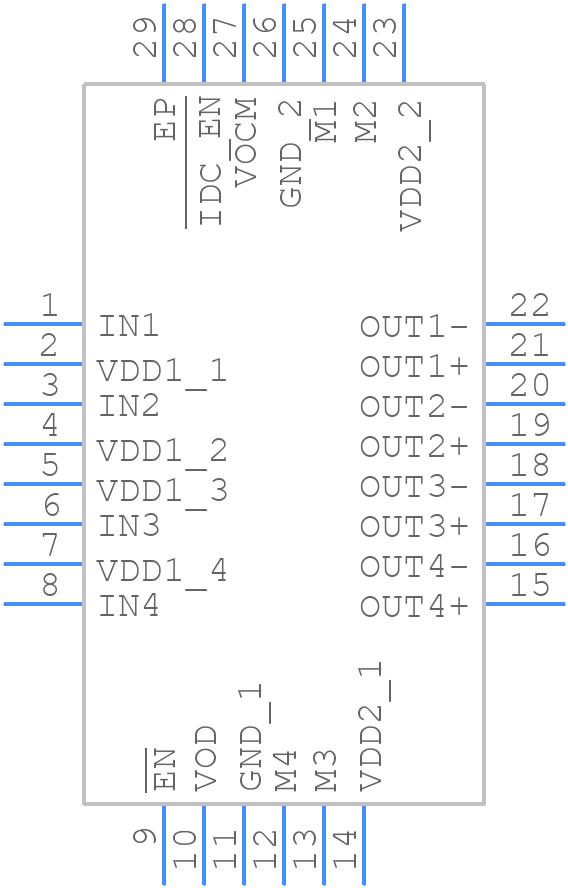

Use the download button to access the LMH32404QWRHFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH32,
or try a keyword search, such as Operational Amplifiers
