A good PCB layout for the LMH5401 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the decoupling capacitors close to the device. TI provides a recommended layout in the datasheet and application notes.
The input capacitor should be a low-ESR ceramic capacitor with a value between 10nF to 100nF, while the output capacitor should be a low-ESR ceramic or film capacitor with a value between 100nF to 1uF. The capacitor values and types depend on the specific application and frequency of operation.
The maximum power dissipation of the LMH5401 is dependent on the ambient temperature and the thermal resistance of the package. The power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. The maximum power dissipation is typically around 1.5W, but this can be increased with proper heat sinking and thermal management.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, use a stable input voltage, and ensure that the output capacitor is properly sized. Additionally, the device should be operated within its recommended operating conditions, and the input and output voltages should be within the specified ranges.
The LMH5401 has a higher output current capability (1.5A) compared to the LMH5400 (1A), and it also has a wider input voltage range (2.2V to 5.5V). The LMH5401 also has a lower quiescent current (2.5mA) compared to the LMH5400 (5mA). The LMH5401 is also available in a smaller package option (QFN).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH5401IRMST Overview

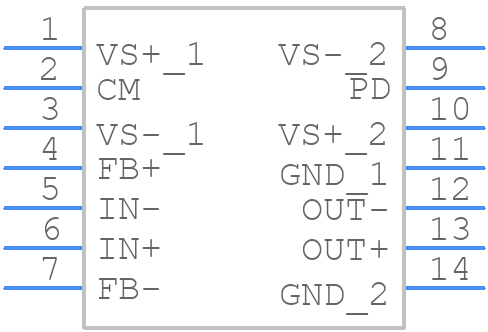

Use the download button to access the LMH5401IRMST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH54,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
