Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for input and output signals.
To ensure stability, follow the datasheet's recommended component values and PCB layout. Additionally, make sure to decouple the power supply pins with adequate capacitors, and use a low-ESR capacitor for the output filter. Also, avoid using long traces or wires for the feedback loop.
The LMH6503MT can handle input signal amplitudes up to 2Vpp, but it's recommended to limit the input signal to 1.5Vpp to ensure optimal performance and prevent distortion.
Yes, the LMH6503MT can be used as a unity-gain buffer by connecting the output directly to the inverting input and using a feedback resistor to ground. However, this configuration may not provide the best noise performance, and the datasheet recommends using a gain of at least 2V/V for optimal noise performance.
The output impedance of the LMH6503MT can be calculated using the datasheet's output impedance plot or by using the equation: Zout = Rout * (1 + (Rf/Ri)), where Rout is the output resistance, Rf is the feedback resistor, and Ri is the input resistor.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6503MT Overview

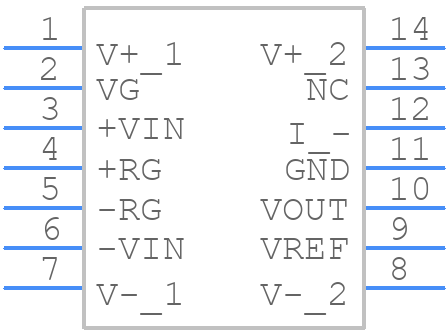

Use the download button to access the LMH6503MT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Other Signal Circuits
