Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
Proper biasing is critical for the LMH6515SQ/NOPB. Ensure that the input common-mode voltage is within the recommended range (typically 1.5V to 3.5V), and that the output stage is properly biased for the desired output voltage swing. Refer to the datasheet for specific biasing recommendations.
The maximum input signal amplitude that the LMH6515SQ/NOPB can handle depends on the specific application and the desired output voltage swing. As a general rule, the input signal amplitude should be limited to ensure that the output stage is not overdriven, which can cause distortion and reduce the amplifier's performance. A good starting point is to limit the input signal amplitude to 1Vpp or less.
To reduce noise and distortion in an LMH6515SQ/NOPB-based circuit, ensure that the input signal is properly filtered and that the power supply is well-regulated. Use bypass capacitors to reduce noise and ringing, and consider adding a low-pass filter to the output stage to reduce high-frequency noise. Additionally, ensure that the PCB layout is optimized for high-frequency performance.
Yes, the LMH6515SQ/NOPB can be used as a unity-gain buffer, but it's essential to ensure that the input signal is properly terminated and that the output stage is properly biased. Additionally, the LMH6515SQ/NOPB has a relatively high input impedance, so it may not be suitable for buffering low-impedance sources.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6515SQ/NOPB Overview

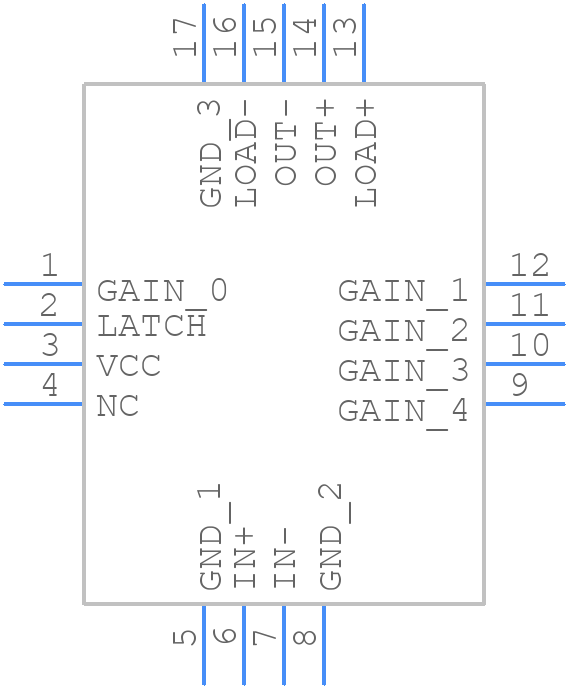

Use the download button to access the LMH6515SQ/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
