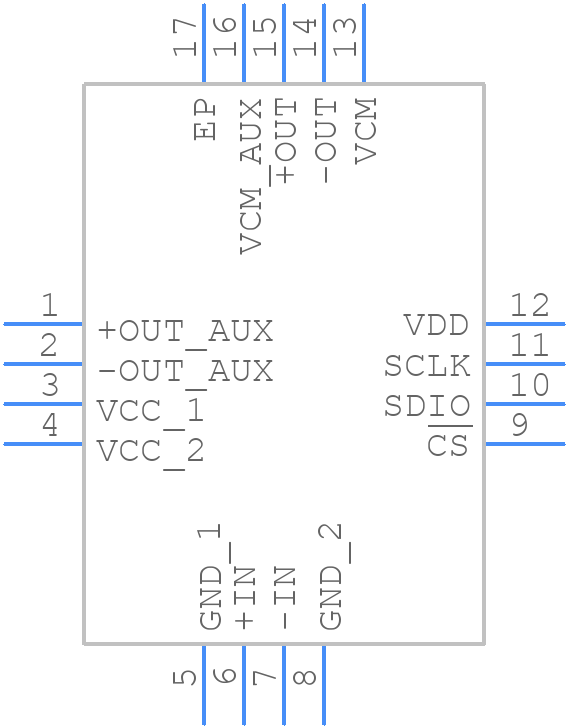

LMH6518SQ - Texas Instruments

LMH6518SQ Details

• Manufacturer Part Number:

  LMH6518SQ

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

• Package Description:

  LLP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  140 µA

• Bias Current-Max (IIB) @25C:

  100 µA

• Common-mode Reject Ratio-Min:

  45 dB

• Common-mode Reject Ratio-Nom:

  86 dB

• Frequency Compensation:

  YES

• JESD-30 Code:

  S-XQCC-N16

• JESD-609 Code:

  e0

• Length:

  4 mm

• Low-Bias:

  NO

• Low-Offset:

  NO

• Micropower:

  NO

• Moisture Sensitivity Level:

  2

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  235

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Supply Current-Max:

  230 mA

• Supply Voltage Limit-Max:

  5.5 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Wideband:

  NO

• Width:

  4 mm
