A good PCB layout for the LMH6551MA involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability in the LMH6551MA at high gains, it's essential to use a compensation capacitor (Cc) between the output and the inverting input. The value of Cc depends on the gain and the desired bandwidth. A good starting point is to use a 10pF capacitor for gains above 10.
The maximum power dissipation of the LMH6551MA is 1.4W. To calculate the power dissipation, use the formula: Pd = (Vcc x Icc) + (Vout x Iout), where Vcc is the supply voltage, Icc is the quiescent current, Vout is the output voltage, and Iout is the output current.
Yes, the LMH6551MA can be used as a unity-gain buffer. However, it's essential to ensure that the input impedance is high enough to avoid loading the input signal. A good practice is to add a series resistor (Rs) between the input and the inverting input to improve the input impedance.
To protect the LMH6551MA from overvoltage and ESD, use a voltage clamp circuit at the input, such as a zener diode or a transient voltage suppressor (TVS). Additionally, use ESD protection devices, such as diodes or resistors, at the input and output pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6551MA/NOPB Overview

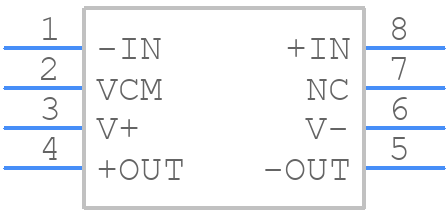

Use the download button to access the LMH6551MA/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
