A good PCB layout for the LMH6553MR involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The output filter components (Rf, Cf, and Lf) should be chosen based on the desired cutoff frequency, output impedance, and attenuation requirements. A good starting point is to use the values recommended in the datasheet, and then adjust them based on the specific application requirements.
The maximum power dissipation of the LMH6553MR is 1.4W. To ensure it doesn't overheat, make sure to provide adequate heat sinking, use a thermally conductive PCB material, and keep the device away from other heat sources. The junction temperature should be kept below 150°C.
Yes, the LMH6553MR can be used in a single-supply configuration. However, the input common-mode voltage range is limited to VCC-1.5V to VCC+0.5V. Make sure to bias the input signal within this range to ensure proper operation.
To reduce noise and distortion, use a low-noise power supply, add decoupling capacitors close to the device, and use a low-ESR output capacitor. Additionally, minimize the length of the input and output traces, and use a shielded enclosure to reduce electromagnetic interference.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6553MR/NOPB Overview

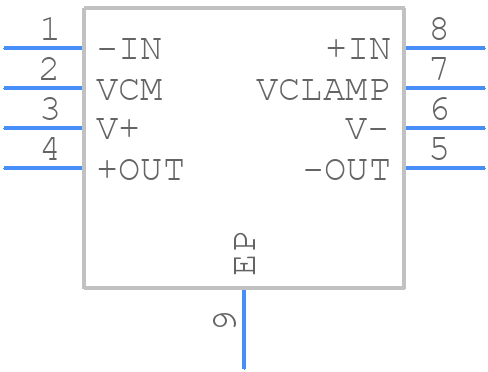

Use the download button to access the LMH6553MR/NOPB schematic symbol, PCB footprint, and 3D model.
