A good PCB layout for the LMH6553SDE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output impedance are matched, and the device is operated within its recommended operating conditions. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
The maximum power dissipation of the LMH6553SDE/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
Yes, the LMH6553SDE/NOPB can be used as a unity-gain buffer. However, it's essential to ensure that the input and output impedance are matched, and the device is operated within its recommended operating conditions. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
The LMH6553SDE/NOPB has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6553SDE/NOPB Overview

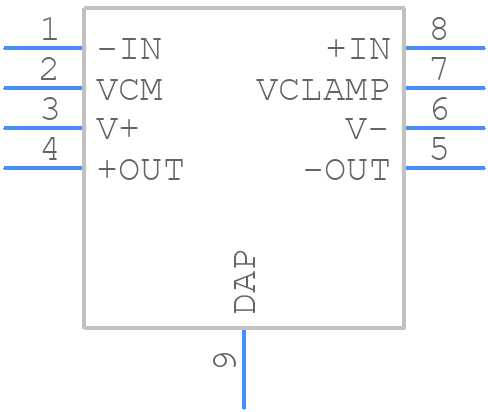

Use the download button to access the LMH6553SDE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
