A good PCB layout for the LMH6554LE/NOPB involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the power supply should be well-regulated.
The maximum power dissipation of the LMH6554LE/NOPB is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 2.5W at 25°C ambient temperature. However, this value can be derated based on the ambient temperature and the thermal resistance of the package.
The LMH6554LE/NOPB is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the power dissipation and ensure proper heat sinking to prevent overheating.
To troubleshoot issues with the LMH6554LE/NOPB, start by verifying the power supply voltage and ensuring that it is within the recommended operating range. Check the input and output signals for distortion or oscillation. Use an oscilloscope to measure the output signal and verify that it meets the required specifications. Also, check the PCB layout and ensure that it follows the recommended guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6554LE/NOPB Overview

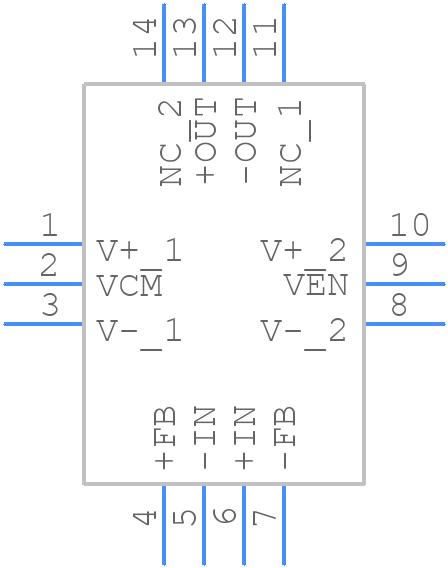

Use the download button to access the LMH6554LE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
