A good PCB layout for the LMH6554LEE/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
The choice of output filter components depends on the specific application and desired frequency response. A good starting point is to use the recommended values in the datasheet, and then adjust based on the specific requirements of the system. It's also important to consider the impedance of the load and the desired attenuation of high-frequency noise.
The maximum power dissipation of the LMH6554LEE/NOPB is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device in a well-ventilated area. Additionally, it's recommended to keep the device within the recommended operating temperature range of -40°C to 85°C.
Yes, the LMH6554LEE/NOPB is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and it's qualified to various industry standards, including MIL-PRF-38535. However, it's essential to consult with Texas Instruments and follow their specific guidelines for high-reliability applications.
To troubleshoot common issues with the LMH6554LEE/NOPB, start by checking the power supply voltage, input and output impedance, and the PCB layout. Ensure that the device is properly decoupled, and the output filter components are correctly selected. If the issue persists, consult the datasheet and application notes, or contact Texas Instruments' technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6554LEE/NOPB Overview

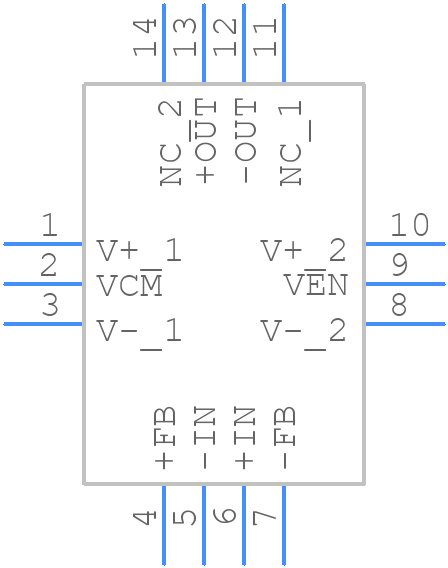

Use the download button to access the LMH6554LEE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
