A good PCB layout for the LMH6554LEX/NOPB involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a symmetrical layout to minimize electromagnetic interference (EMI).
The choice of output filter components depends on the specific application requirements. A good starting point is to use the recommended values in the datasheet, and then adjust based on the desired frequency response and impedance matching. It's also important to consider the component tolerances and parasitic effects.
The maximum power dissipation of the LMH6554LEX/NOPB is 1.4W. To ensure it doesn't overheat, it's essential to provide adequate heat sinking, such as using a thermal pad or a heat sink, and to keep the device within the recommended operating temperature range of -40°C to 85°C.
Yes, the LMH6554LEX/NOPB is suitable for high-reliability and aerospace applications. It's manufactured using a high-reliability process, and Texas Instruments provides additional documentation and support for these types of applications. However, it's essential to consult with Texas Instruments and follow their guidelines for using the device in these applications.
To troubleshoot common issues with the LMH6554LEX/NOPB, start by checking the PCB layout, power supply, and component values. Ensure that the input and output impedances are matched, and the device is operated within the recommended specifications. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any issues. Consult the datasheet and application notes for troubleshooting guides and tips.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LMH6554LEX/NOPB Overview

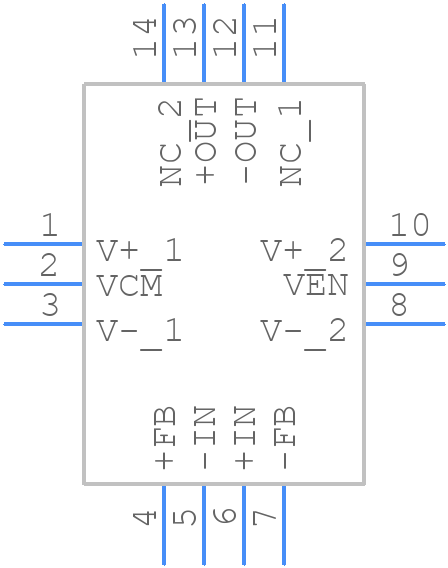

Use the download button to access the LMH6554LEX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LMH65,
or try a keyword search, such as Operational Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
